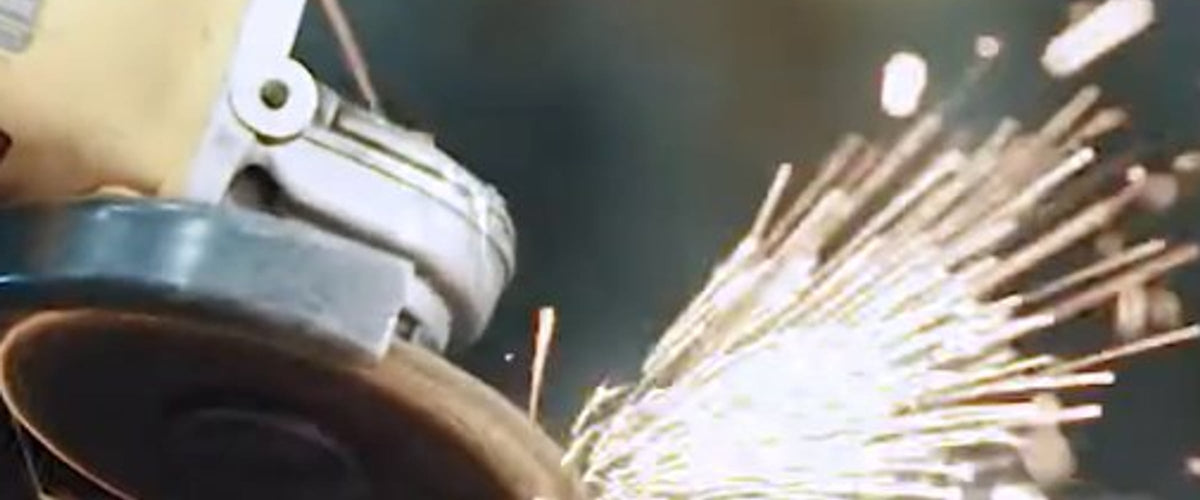

Cut Off Wheels: .045 vs 1/16 vs 1/8, and Stainless-Safe

What is a cut off wheel?

A cut off wheel is a thin abrasive disc that slices through metal with its edge. You may also see it called a cutoff wheel, a cutting wheel or a cutting disc. It fits an angle grinder, a die grinder, a cut-off tool, a circular saw or a chop saw, depending on its size.

A cut-off wheel is not a grinding wheel. A grinding wheel is about 1/4 in. thick and removes metal with its face. A cut-off wheel is 1/32 to 1/8 in. thick and is only strong along its edge. Push on its side and it can crack.

"Start with the thinnest wheel your tool will take, and move up in thickness only when the stock gets heavy enough to bend it.” -- Eldorado Tools' President, David Castro

.045 vs 1/16 vs 1/8: which cut-off wheel thickness should I use?

Use the thinnest cut-off wheel your tool takes for the job. A thin wheel cuts faster and cooler and leaves less burr. A thicker wheel lasts longer and resists bending on heavy stock.

The catch is that the tool decides which thicknesses exist. A 4-1/2 in. grinder wheel spins at up to 13,300 RPM, and a 14 in. chop saw wheel at 4,400 RPM, so each size is built differently. Here is every thickness in our Walter range by wheel size:

Walter speed ratings, from the wheel labels in our catalog, checked Oct 21, 2026.

So on a 4-1/2 in. grinder the real choice is 3/64 in. for cutting, or 5/64 and 3/32 in. when you need a tougher wheel. Walter's 4-1/2 in. cutting wheels stop at 3/32 in.; a 4-1/2 x 1/8 in. disc is usually a cut-and-grind wheel. A 1/8 in. wheel belongs on a chop saw, or on a small cut-off tool for notching.

Is .045 the same as 3/64? Close enough. 3/64 in. is .047 in. Most brands print one or the other on the same wheel. Our thin 4-1/2 in. wheels are labelled 3/64 in.

Which cut-off wheel do I need for my tool?

Find your tool in the left column, then the metal. Every wheel below is Walter, priced per wheel and sold by the box.

Prices checked on eldoradotools.com on Oct 21, 2026. See every size in our cut-off wheels collection. For blades that cut steel in a circular saw, see our metal-cutting circular saw blade guide.

[EDITOR: insert the wheel-chooser tool here once it is merged and deployed. Until then, leave this table on its own. Remove this note.]

Always check the speed: the RPM printed on the wheel must be equal to or higher than the no-load RPM on your tool's label.

What is the best cut off wheel for stainless steel?

The best cut off wheel for stainless steel is one made free of iron, sulfur and chlorine. A wheel with iron in it, or one that has already cut carbon steel, leaves iron on the cut. That iron rusts, and the stainless looks dirty within days.

Walter prints that guarantee on these lines:

Walter descriptions in our catalog, Oct 21, 2026.

The budget line is the surprise. ALLSTEEL 11W042 carries the same guarantee as ZIP STAINLESS 11F042, at $3.14 a wheel instead of $6.13. A box of 25 is $78.50 instead of $153.25. ZIP STAINLESS is the faster, cleaner-cutting wheel when the finish matters. ALLSTEEL is the smart pick when it doesn't.

Whichever you buy, keep stainless wheels in their own bin and never use them on carbon steel first. Crews building liquid-cooled data centers follow the same rule on 304 and 316L pipe. [EDITOR: link the data center guide here once it is live.]

Type 1 vs Type 27: which cut-off wheel fits my guard?

Use a Type 27 cut-off wheel with the standard guard that came on your grinder, and a Type 1 only with a Type 1 cutting guard that covers both sides of the wheel. That is the rule in the ANSI B7.1 safety code, and wheel makers print it on the box.

Verdict: Type 27 for most grinder work with the stock guard; Type 1 for the deepest straight cuts, with the right guard.

Mount a Type 27 with its raised center toward the grinder, so the flange nut sits down in the dish and below the face.

Are premium cut-off wheels worth the money?

Premium cut-off wheels are worth it when you cut every day, because the number that matters is cost per cut, not price per wheel. A wheel that costs twice as much has to make twice as many cuts to break even. If it also cuts faster, you save labor on top.

Walter rates ZIPCUT as reinforced to resist twisting and bending, which keeps the cut straight. For occasional cuts, ALLSTEEL is the budget wheel in the same family, and it is still safe on stainless.

[EDITOR: David's cut count goes here: cuts per 11T042 on 1-5/8 in. strut, against a cheaper wheel. Remove this note.]

Why do cut-off wheels wear out fast or break?

Cut-off wheels wear out fast or break when they are pushed too hard, twisted in the cut, or pinched by the work. Here is how to tell which:

Cutting aluminum? A die grinder with a carbide burr often beats a wheel; see our carbide burr for aluminum guide.

Not sure which wheel to pick? Call our team at (833) 4-ETOOLS or email sales@eldoradotools.com.

First published [EDITOR: date], with prices checked on the store Oct 21, 2026.
