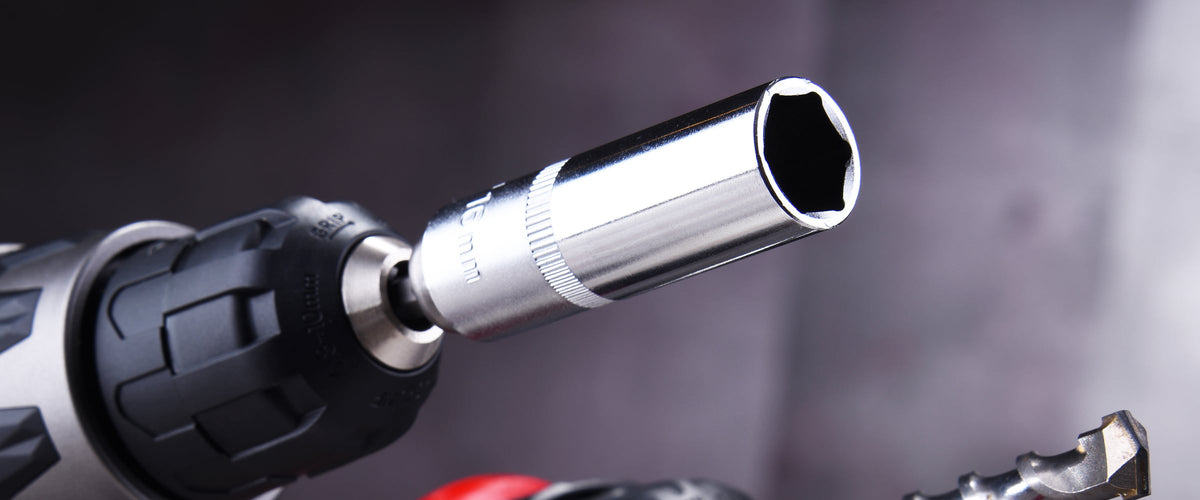

Impact Socket Adapters: Sockets on an Impact Driver

Every truck has a socket set and an impact driver, and the two don't fit together. A $2 piece of steel fixes that. Get the size or length wrong, though, and the socket wobbles off, the stack eats your torque, or a 3/4 in. anchor nut twists the adapter like licorice. Start with the tool in your hand.

Do I need a socket adapter, or does my tool already take sockets?

You need a socket adapter only if your tool has a 1/4 in. hex chuck. That covers every impact driver and any drill with a hex quick-change. An impact wrench ends in a square anvil (3/8 or 1/2 in.), so a socket goes straight on and an adapter only adds a weak joint. Impact driver vs impact wrench is the first fork, and it settles most of this page:

The catalog files these under square drive extensions, the old name. Each one is a hex shank with a square drive and a spring ball on the end.

Which drive size: 1/4, 3/8 or 1/2 in.?

Pick the smallest square drive that holds the socket for your fastener. A smaller drive means a shorter, lighter, less wobbly stack. Buy a bigger drive only to reach a bigger hex or to use sockets you already own. Here are the standard hex sizes for the fasteners these crews drive:

Standard hex sizes (ASME B18.6.4 and B18.2.2). Heads vary by brand, so check the box.

How long should the socket adapter be?

Use the shortest adapter that lets the tool clear the work. Every inch adds twist, and the twist soaks up the hammer blows meant for the nut. A 2 in. adapter suits open work. Go to 3 to 4 in. to clear a beam flange or a strut lip, and to 6 to 8 in. for nuts deep inside a rack or bracket. Never stack two adapters to make one long one. Each joint adds slop, and the ball detent is the first part to give.

Our impact socket adapters

Prices per piece from our catalog, Oct 26, 2026. All have a 1/4 in. hex shank, made by ITM for 1/2 in. drills and impact drivers.

Which socket fits which screw, nut or rod?

Match the socket's hex to the fastener, then match its square to your adapter. Our magnetic sockets cover the small end, 3/16 to 1/2 in. hex, in all three drives. Use them for Tek screws and lags. For 7/16, 9/16 and 3/4 in., put one of your own impact sockets on the matching adapter, or use the 9/16 in. nut setter listed further down. Recessed fastener? The nose diameter tells you whether the socket fits the hole.

Prices per piece from our catalog, Oct 26, 2026. Dimensions are from ITM. All are special order.

Can a socket adapter run threaded rod and anchor nuts?

Yes, up to 3/8 in. rod (a 9/16 in. nut) on an impact driver. At 1/2 in. rod, slow down and use the 1/2 in. drive. At wall anchor rods, switch to an impact wrench. Each trade on this page hits that line at a different place:

• Plumbing: clevis and trapeze hangers on 3/8 in. rod, and beam clamp setscrews, are impact-driver work. Use a 3/8 in. drive adapter with a 9/16 in. deep impact socket, so the rod passes up into the socket while the nut runs.

• Data center: strut and tray hangers are the same sizes. In a live hall, many sites ban impacting entirely because of vibration and debris. There, use the same adapter in a drill-driver on its clutch and finish with a torque wrench to spec.

• Foundation and basement repair: bracket bolts up to 1/2 in. go on a 1/2 in. drive adapter. Wall anchor rods (3/4 in., 1-1/8 in. nut) go on an impact wrench with a deep impact socket. An adapter that size is the weakest link in the stack. Our foundation repair tools guide lists the rest of that kit.

Why does the socket fall off, or the adapter snap?

The spring ball on the square is worn, or the socket's detent hole doesn't line up with it. Clean the grit out of the ball with a punch and spray. If the ball still doesn't spring back, replace the adapter. At $2 to $7 it's a consumable, which is why crews buy them by the handful. A twisted or snapped square means the job was too big for a 1/4 in. hex shank. Move up a drive size or move to an impact wrench. Chrome hand-ratchet sockets don't belong on any impact tool. Our impact vs regular bit tips guide explains why impact steel survives the hammer blows and hand-tool steel doesn't.

From the shop floor

"Crews tend to grab the biggest drive in the box because it feels like the safe choice. It rarely is. Every step up in drive size adds length, weight and wobble to the stack, and that’s where control slips. Pick the smallest drive that holds the socket you need, and the tool works with you instead of against you.” David Castro, President, Eldorado Tools

What else rides in the pouch with a socket adapter?

If you mostly drive one hex size, a magnetic nut setter does the same job in one piece, with no joint to wobble. The two most-bought sizes in our order history are the 5/16 in. (IMP-065-20, $4.25, min 10) and the 3/8 in. (IMP-065-24, $5.07, min 10). For 3/8 in. threaded rod, the 9/16 in. x 6 in. (IMP-085-40, $18.84, min 5) reaches past the rod. Need a pilot hole first? Hex-shank impact drill bits such as the 3/16 in. 255HEX1264 ($4.21, min 12) go in the same chuck with no tool change. Anchor crews who also run SDS hammers should read our SDS-Max adapter guide. It covers a different shank, but the same rule against stacking applies.

Outfitting a crew? Call or email us with the sizes and counts, and we'll quote the lot.

Sources: ITM product specifications (Eldorado Tools catalog, Oct 26, 2026); ASME B18.6.4 and B18.2.2 hex head dimensions; Eldorado Tools order history 2023–2026.
