Foundation Repair Tools: What Crews Need, Step by Step

Why do foundation repair tools matter more in 2026?

Foundation repair tools matter more in 2026 because crews have more work than people. Groundworks, one of the largest foundation repair companies in the U.S., reported that its own field data showed foundation repair demand up more than 20% in the first five months of 2026. It tied the rise to older homes and shifting soil. Groundworks did not publish how it measured this, so treat it as one company's number, not an industry total.

The housing stock backs up the trend. Nearly half of U.S. homes were built before 1980, according to First American Data & Analytics. Older foundations crack, bow and settle as soil swells in wet seasons and shrinks in droughts.

Labor is the catch. NAHB's Q3 2026 remodeler survey names labor as the main headwind for remodelers. Groundworks says it plans to create 5,000 skilled trades jobs over five years to keep up. Until those hires are trained, every crew hour counts. A dull wheel or a re-drilled hole costs the one thing a short-staffed crew cannot buy more of.

Eldorado Tools' President, David Castro, on his observations with foundation repair, “The mistake I see most is running a general-purpose wheel in heavily reinforced concrete. If you’re hitting rebar all day, the heavy-duty KS-14 is the one I’d put on the saw.”

What tools do foundation repair crews use?

Foundation repair crews use diamond wheels, long SDS-Max bits, SDS-Plus anchor bits, core bits and chisels. The table below matches each step of a typical job to the tool and one product we stock for it. Browse the full range in our Foundation & Basement Repair shop.

Prices checked on eldoradotools.com on Oct 15, 2026.

How do you cut a basement floor for interior drain tile?

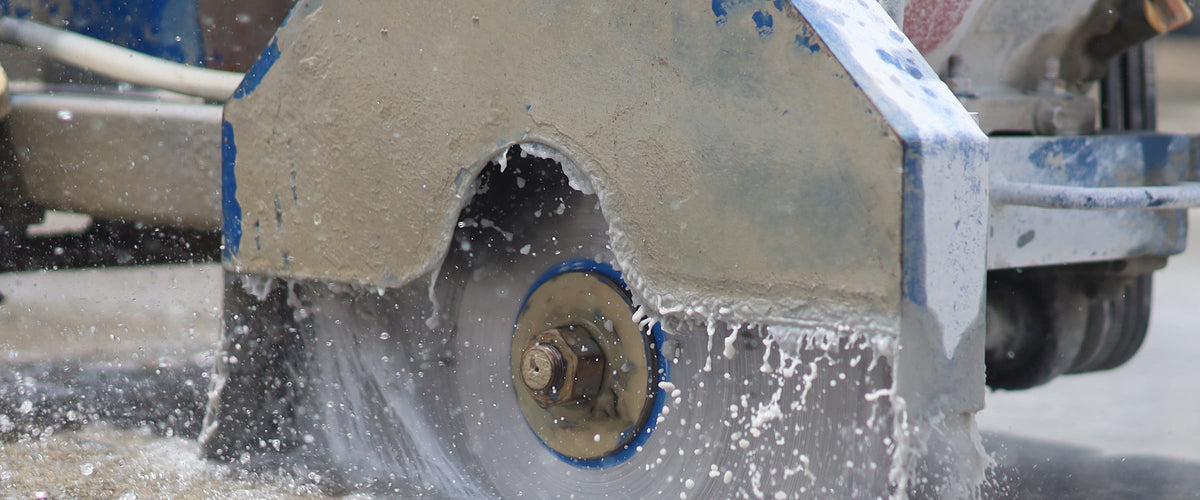

To cut a basement floor for interior drain tile, saw two parallel lines along the wall with a 14 in. diamond wheel, then break out the strip with a chisel. The saw does the clean edge. The chisel does the removal.

Pick the wheel by the concrete. The KS-14 ($99.51) is our heavy-duty 14 in. wheel. It has laser-welded 12 mm turbo segments and is made for reinforced concrete and block. For plain slabs, the SG-14 ($76.06) is the general-use 14 in. wheel with 10 mm segments. Both fit walk-behind, cut-off and masonry saws with a 1 in./20 mm arbor, cut wet or dry, and are rated to 5,460 RPM, per ITM.

For corners and tight spots near the wall, a 7 in. wheel on an angle grinder or circular saw reaches where the big saw cannot. The SG-70 ($29.14) is a 7 in. segmented wheel for concrete, block and brick, rated to 8,730 RPM.

Cut wet when you can. Basements trap dust, and concrete dust contains crystalline silica. Water keeps it down.

Once the lines are cut, a flat chisel in an SDS-Max hammer breaks out the strip. The 7024FC (1 in. x 24 in., $34.86) chips and cuts concrete to a line. The wider 7029SC scaling chisel (2 in. x 24 in., $36.20) cleans up the trench floor and edges. Run both in hammer-only mode. See all SDS-Max tools.

What drill bit do you need for foundation wall anchors?

For foundation wall anchors, you need a long SDS-Max 4-cutter bit in the hole size the anchor maker specifies. The bit has to reach all the way through the wall, so drilling depth matters more than overall length.

Our 31 in. ITM X-Cutter SDS-Max bits drill 31 in. deep and are 36 in. long overall. Their 4-cutter carbide heads are built for reinforced concrete.

Prices checked on eldoradotools.com on Oct 15, 2026, per bit.

Always match the hole to the anchor system's install sheet. Wall anchor rods and plates vary by maker. If the bit hits bar inside the wall, see our guide to rebar drill bits for when to switch to a rebar cutter or puncher.

What bits do you need for push pier and helical pier brackets?

Push pier and helical pier brackets bolt to the footing, so you need SDS-Plus 4-cutter bits sized to the bracket's anchor bolts. Footings often hold rebar, and a 4-cutter head drills past glancing hits in hammer mode.

The ITM X-Cutter EVL63264 (1/2 in. x 6-1/4 in., $12.56 per bit, min. 4) and EVL84064 (5/8 in. x 8 in., $23.94 per bit, min. 2) cover the common anchor sizes. The bracket maker's install sheet sets the hole size and depth.

When a hole lands dead on a bar, cut the bar with a rotation-only rebar cutter the same size as the hole, such as the RBS-10 (5/8 in. SDS-Plus, $53.90). Footing bar is structural, so get the engineer's OK first. Our rebar drill bit guide covers the full step-by-step.

What size hole do you need for a sump pump discharge line through a foundation wall?

A 2-3/4 in. hole fits a 2 in. PVC sump discharge line through a foundation wall with room to seal around it. Schedule 40 PVC in 2 in. size has an outside diameter of 2.375 in., per ASTM D1785. Check the size of your own discharge pipe and sealing method first.

The 880SL1055 is a 2-3/4 in. x 12 in. one-piece SDS-Max core bit ($232.14). It cuts concrete, brick, stone and block, comes with a 1/2 in. x 6 in. pilot drill, and cuts about 3 in. deep before you pull the core, per ITM. For thicker walls, the 22 in. 880SL1065 ($267.17) gives more reach.

What tool rakes out mortar joints on a block foundation wall?

A tuck point diamond wheel rakes out mortar joints on a block foundation wall before you repoint. Its thick kerf clears a full joint in one pass.

The UT-40 is a 4 in. tuck point wheel with a 1/4 in. (0.250 in.) kerf, rated to 15,000 RPM. It fits angle grinders with a 7/8 or 5/8 in. arbor and cuts mortar, masonry and concrete wet or dry. Use a grinder with a dust shroud and vacuum indoors.

How much crew time does a worn wheel or bit cost?

A worn wheel or bit costs crew time every time it slows a cut or forces a swap. On a short-staffed crew, that time comes straight out of the next job.

Here is an example, not a study. Say a worn wheel or bit adds 15 minutes to a job, between slower cutting and a mid-job swap. A crew running 8 jobs a week loses 2 hours. Over a 40-week season, that is 80 hours, or two full work weeks for one person. A new SG-14 wheel costs $76.06.

Three habits keep that time on the job:

• Stock spares on the truck. Carry a second wheel and a second bit in the sizes you use most.

• Standardize sizes across crews. New hires should not have to guess which bit fits which bracket.

• Replace on a schedule. Swap anchor bits before they drill undersized holes, not after an anchor fails to hold.

What should a foundation repair crew keep on the truck?

A foundation repair crew should keep at least one spare of every wheel and bit it uses on a typical job. Use this list as a start and adjust for the systems you install.

Prices checked on eldoradotools.com on Oct 15, 2026.

Sources: Groundworks press release, June 23, 2026 (company field data and hiring plan); First American Data & Analytics, via the Las Vegas Sun, June 2026; NAHB Remodeling Market Index, Q3 2026, via HousingWire; ASTM D1785 (PVC pipe dimensions); ITM product specifications.

Questions about a job? Call our team at (833) 4-ETOOLS or email sales@eldoradotools.com.

Change log: Oct 15, 2026 — first draft. Prices checked on the store on Oct 15, 2026.
