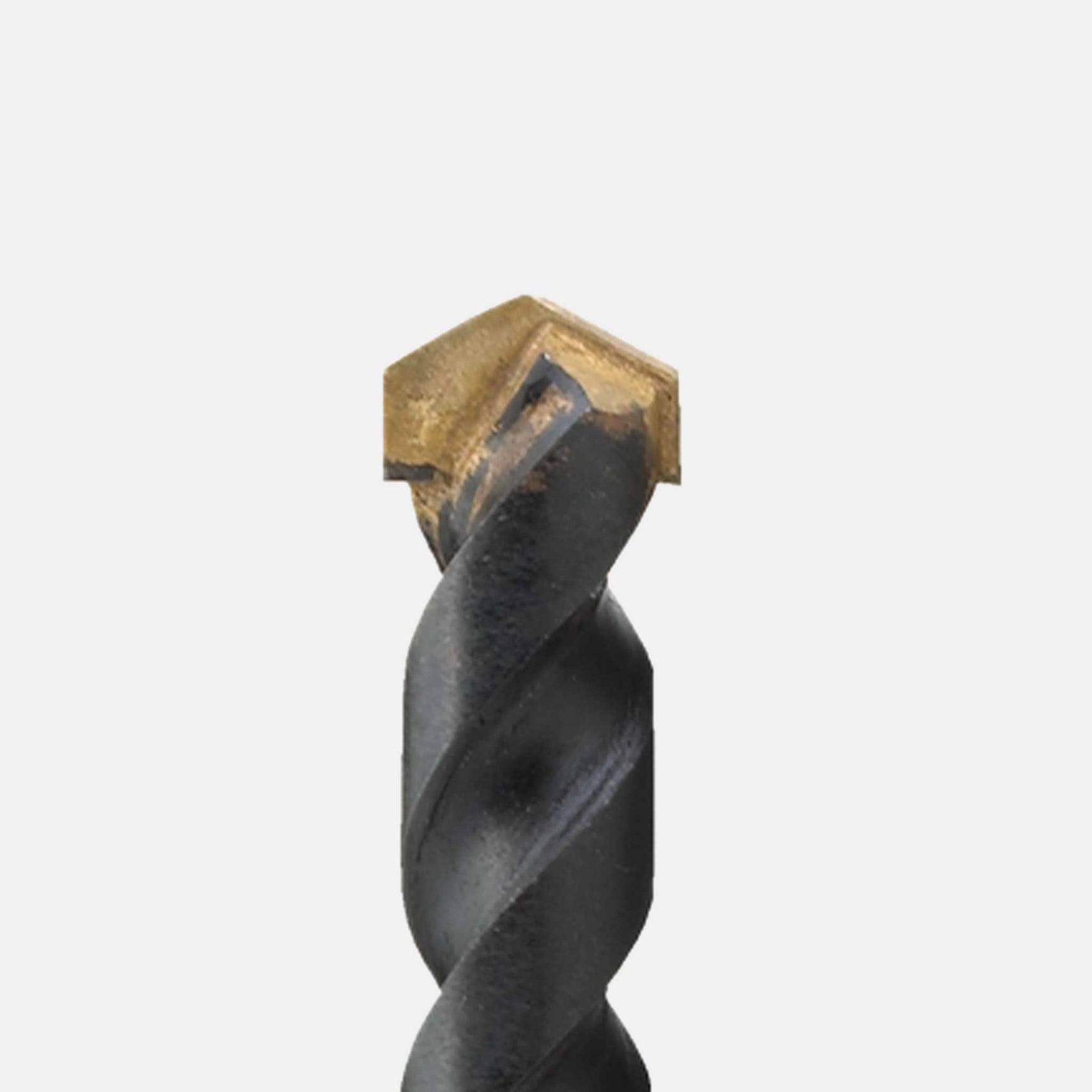

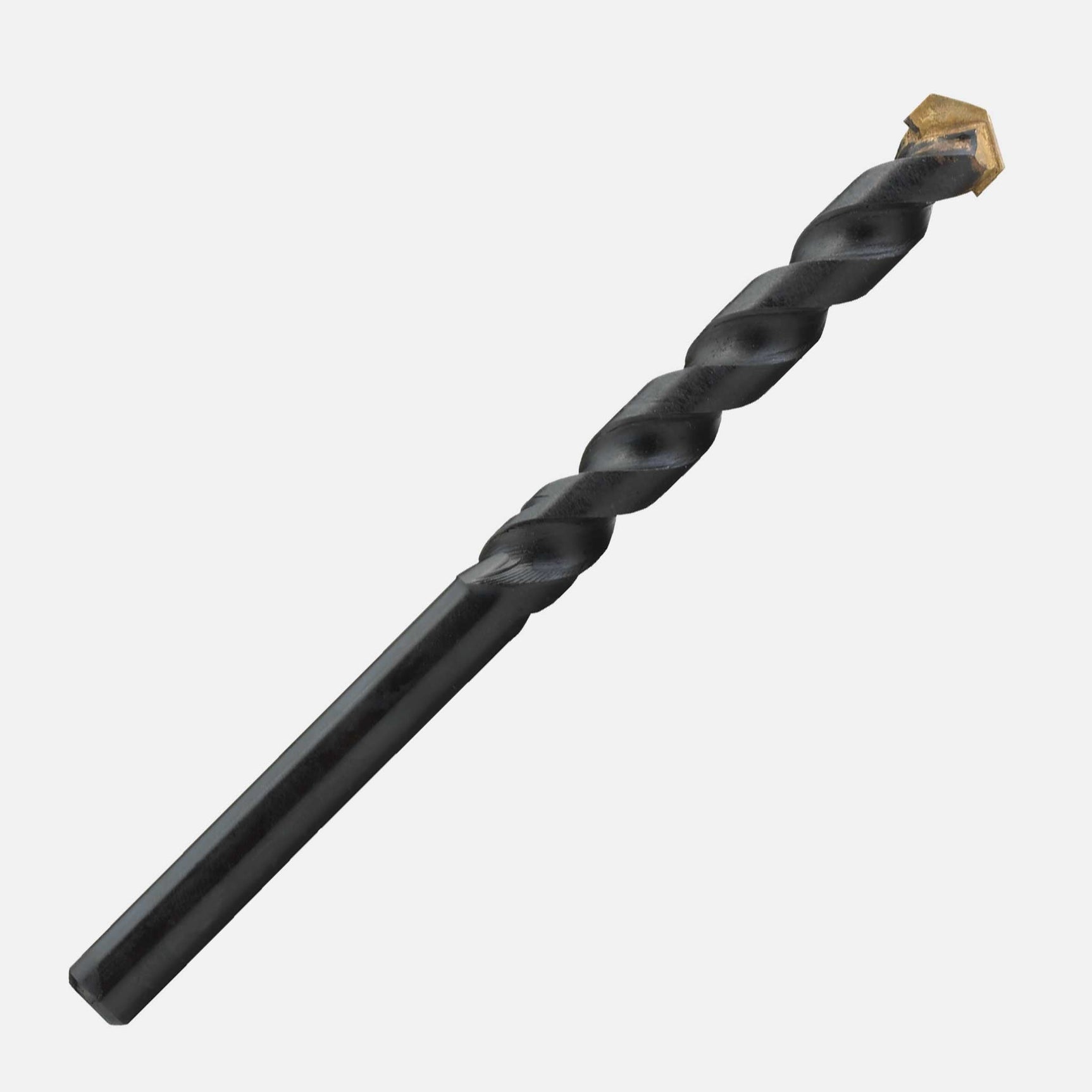

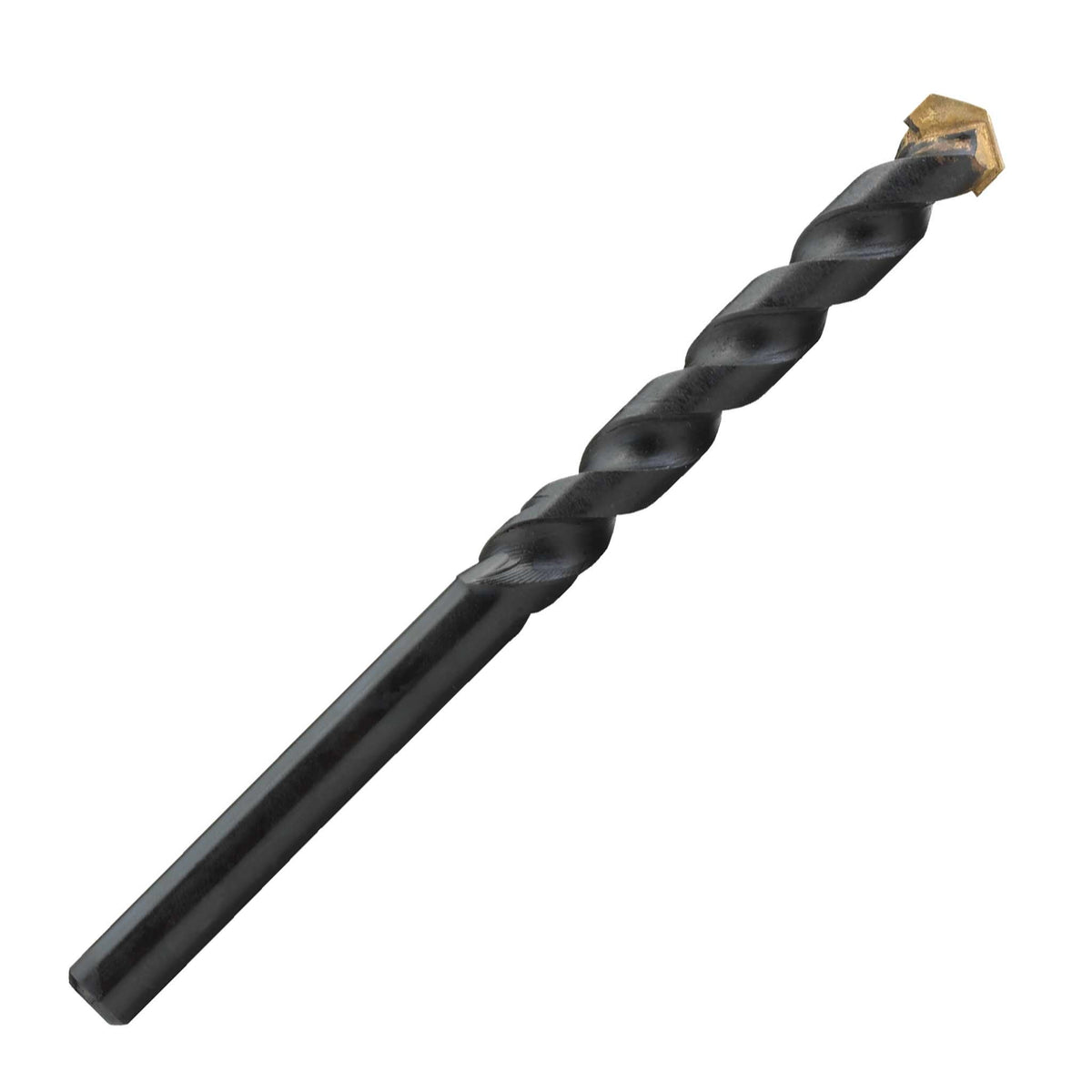

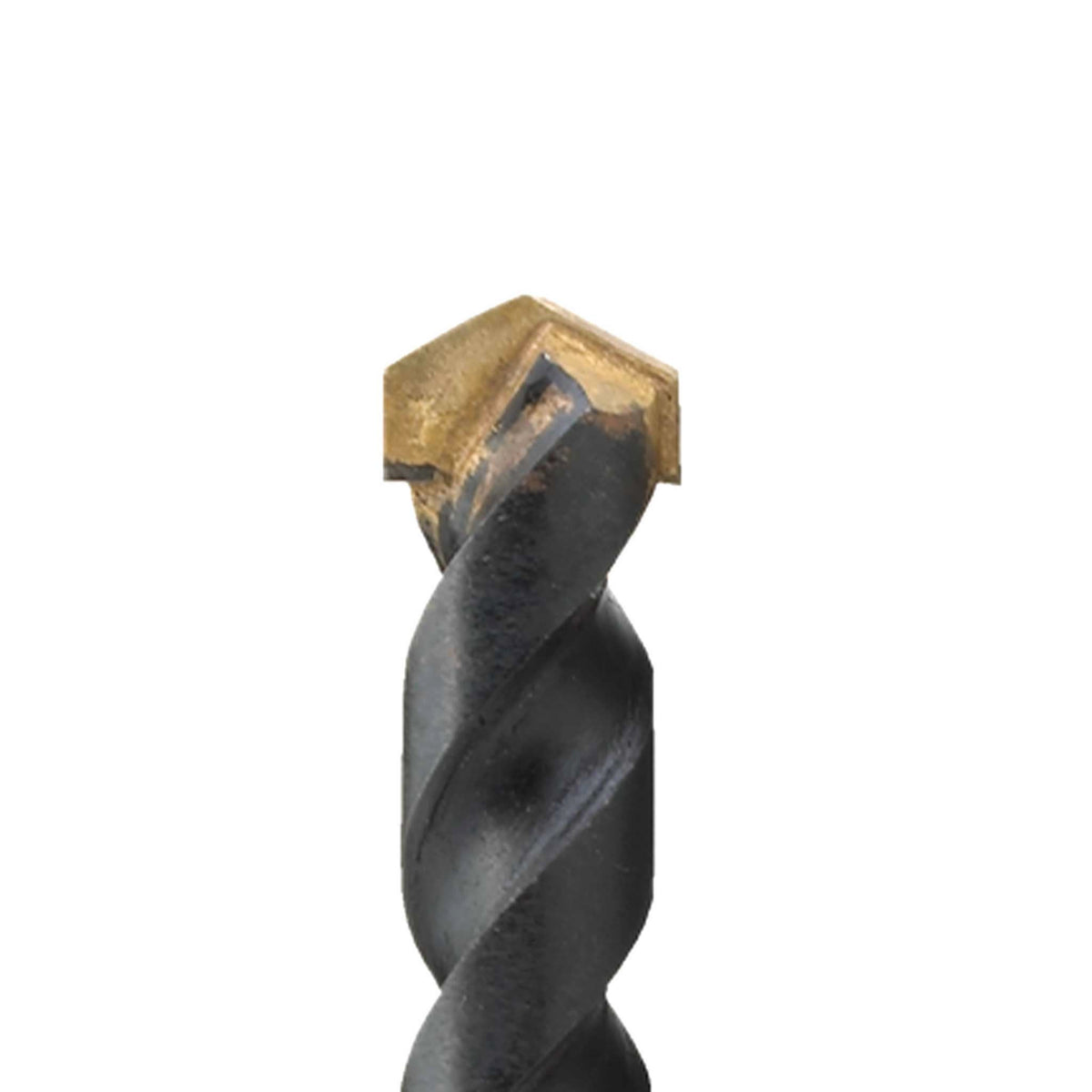

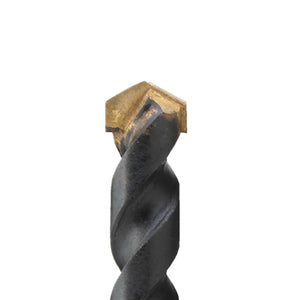

Roto Percussion Drills – Standard
Available individually or in bulk packs, these percussion drill bits are engineered with a carbide tip, slow spiral flute, and tempered body for superior performance in concrete, brick, and masonry applications.
Key Features
- General Purpose
- Tungsten Carbide Tip
- Slow Spiral Flute
- Tempered Body
- Black Oxide Finish
- Gold Head
- Straight Shank
- ANSI Specification
Recommended Applications
- Percussion Drilling
- Concrete, Brick & Block
- Masonry Work
Specifications
Part # | Size | OAL | Drilling Depth | Shank |
---|---|---|---|---|
502SP4001 | 1/8” | 3” | 1-1/2” | 1/8” |
502SP4002 | 3/16” | 4” | 2-1/2” | 3/16” |
502SP6001 | 3/16” | 6” | 4” | 3/16” |
502SP4732 | 7/32” | 4” | 2-1/2” | 7/32” |
502SP4003 | 1/4” | 4” | 2-1/2” | 1/4” |
502SP6002 | 1/4” | 6” | 4” | 1/4” |
502SP1201 | 1/4” | 12” | 10” | 1/4” |
502SP1814 | 1/4” | 18” | 16” | 1/4” |
502SP4004 | 5/16” | 4” | 2-1/2” | 1/4” |
502SP6003 | 5/16” | 6” | 4” | 1/4” |
502SP4005 | 3/8” | 4” | 2-1/2” | 1/4” |
502SP6004 | 3/8” | 6” | 4” | 3/8” |
502SP1203 | 3/8” | 12” | 10” | 3/8” |
502SP1838 | 3/8” | 18” | 16” | 3/8” |
502SP6005 | 7/16” | 6” | 4” | 1/4” |
502SP4006 | 1/2” | 4” | 2-1/2” | 1/4” |
502SP6007 | 1/2” | 6” | 4” | 3/8” |
502SP1204 | 1/2” | 12” | 10” | 3/8” |
502SP1812 | 1/2” | 18” | 16” | 3/8” |
502SP6008 | 9/16” | 6” | 4” | 3/8” |
502SP6009 | 5/8” | 6” | 4” | 3/8” |
502SP1205 | 5/8” | 12” | 10” | 3/8” |
502SP1858 | 5/8” | 18” | 16” | 3/8” |
502SP6010 | 3/4” | 6” | 4” | 1/2” |
502SP1206 | 3/4” | 12” | 10” | 1/2” |
502SP1834 | 3/4” | 18” | 16” | 1/2” |
502SP6011 | 7/8” | 6” | 4” | 1/2” |
502SP1207 | 7/8” | 12” | 10” | 1/2” |
502SP1878 | 7/8” | 18” | 16” | 1/2” |
502SP6012 | 1” | 6” | 4” | 1/2” |
502SP1208 | 1” | 12” | 10” | 1/2” |
502SP1801 | 1” | 18” | 16” | 1/2” |
