ITM | SKU: 715S12516

5/16" x 12-1/4" SDS-Plus

$14.65 $24.42

Shipping calculated at checkout.

✓Free shipping on orders over $200
✓Secure, encrypted checkout
•Questions? Call 833-438-6657, 8 AM to 4 PM MST
•Buying for a crew? Order on credit with a contractor account

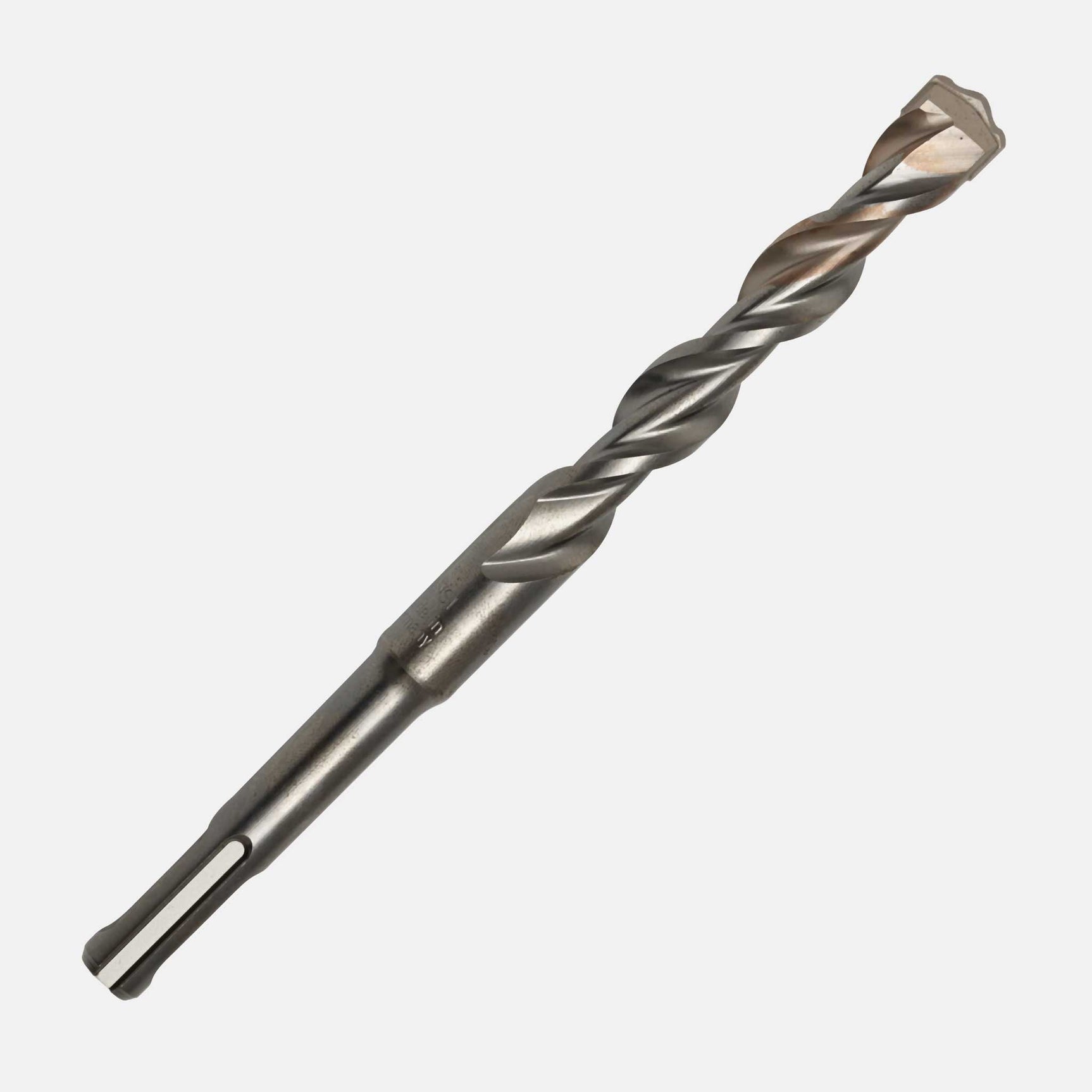

5/16" x 12-1/2" SDS-Plus Drill Bit by ITM

Manufacturer: ITM

Boost your drilling efficiency with the 5/16" x 12-1/2" SDS-Plus Drill Bit by ITM. Crafted in Germany, this drill bit features a 4-PLUS serrated carbide tip for exceptional durability, precise centering, and rapid drilling through various materials like concrete, masonry, brick, and natural stone.

The SDS-Plus design incorporates an internal piston and ball-bearing system, allowing the bit to rotate and hammer effectively, making it ideal for heavy-duty drilling tasks. This ANSI-compliant drill bit boasts optimized carbide head geometry, a self-centering chisel point, and a special tungsten carbide tip. The copper/silver brazing ensures a secure bond, while the polished finish guarantees clean, round holes with minimal vibration.

Key Features:

Optimized Carbide Head Geometry
Self Centering Chisel Point
ANSI Specification Compliant
Special Tungsten Carbide Tip
Copper/Silver Brazing for Durability
Fast Dust Removal Capability
High Drilling Speeds
Clean and Precise Holes
Reduced Vibration
Industrial-Grade Quality

Suitable for use in:

Concrete
Stone
Brick
Masonry

Part # Size OAL Drilling Head Qty.
715S41064 5/32” 4-1/4” 2” 4-PLUS 1
715S61064 5/32” 6-1/4” 4” 4-PLUS 1
715S61064-B 5/32” 6-1/4” 4” 4-PLUS 25
715S41264 3/16” 4-1/4” 2” 4-PLUS 1
715S41264-B 3/16” 4-1/4” 2” 4-PLUS 25
715S61264 3/16” 6-1/4” 4” 4-PLUS 1
715S61264-B 3/16” 6-1/4” 4” 4-PLUS 25
715S81264 3/16” 8-1/4” 6” 4-PLUS 1
715S81264-B 3/16” 8-1/4” 6” 4-PLUS 25
715S10316 3/16” 10-1/4” 8” 4-PLUS 1
715S12316 3/16” 12-1/4” 10” 4-PLUS 1
715S14316 3/16” 14” 12” 4-PLUS 1
715S16316 3/16” 16” 14” 4-PLUS 1
715S20316 3/16” 20” 18” 4-PLUS 1
715S24316 3/16” 24” 22” 4-PLUS 1
715S41464 7/32” 4-1/4” 2” 4-PLUS 1
715S61464 7/32” 6-1/4” 4” 4-PLUS 1
715S81464 7/32” 8-1/4” 6” 4-PLUS 1
715S10732 7/32” 10-1/4” 8” 4-PLUS 1
715S14732 7/32” 14” 12” 4-PLUS 1
715S16732 7/32” 16” 14” 4-PLUS 1
715S20732 7/32” 20” 18” 4-PLUS 1
715S24732 7/32” 24” 22” 4-PLUS 1
715S41664 1/4” 4-1/4” 2” 4-PLUS 1
715S41664-B 1/4” 4-1/4” 2” 4-PLUS 25
715S61664 1/4” 6-1/4” 4” 4-PLUS 1
715S61664-B 1/4” 6-1/4” 4” 4-PLUS 25
715S81664 1/4” 8-1/4” 6” 4-PLUS 1
715S81664-B 1/4” 8-1/4” 6” 4-PLUS 25
715S10014 1/4” 10-1/4” 8” 4-PLUS 1
715S14014 1/4” 14” 12” 4-PLUS 1
715S16014 1/4” 16” 14” 4-PLUS 1
715S20014 1/4” 20” 18” 4-PLUS 1
715S24014 1/4” 24” 22” 4-PLUS 1
715S62064 5/16” 6-1/4” 4” 4-PLUS 1
715S62064-B 5/16” 6-1/4” 4” 4-PLUS 25
715S82064 5/16” 8-1/4” 6” 4-PLUS 1
715S12516 5/16” 12-1/4” 10” 4-PLUS 1
715S62464 3/8” 6-1/4” 4” 4-PLUS 1
715S62464-B 3/8” 6-1/4” 4” 4-PLUS 25
715S82464 3/8” 8-1/4” 6” 4-PLUS 1
715S10038 3/8” 10-1/4” 8” 4-PLUS 1
715S12038 3/8” 12-1/4” 10” 4-PLUS 1
715S12038-B 3/8” 12-1/4” 10” 4-PLUS 10
715S18038 3/8” 18” 16” 4-PLUS 1
715S24038 3/8” 24” 22” 4-PLUS 1
715S62864 7/16” 6-1/4” 4” 4-PLUS 1
715S12716 7/16” 12-1/4” 10” 4-PLUS 1
