Data Centers: Rack & Equipment Anchors

Products135
BrandITM
Quick answer

Bigger anchors for racks, PDUs, CRAH units, chiller pads and seismic bracing: X-Cutter SDS-Max bits 3/8" to 2" up to 52" long, SDS-Plus bits from 1/2" up, tunnel drills and SDS-Max extensions.

135 results
« Previous 1 … 3 4 5 6 Next »

Bits for 1/2" to 3/4" anchors

Racks, PDUs, CRAH units, chillers and seismic bracing go down on 1/2" to 3/4" wedge anchors, and a seismic rack frame can take four 3/4" anchors on its own. This step holds the bits for those holes and the long ones through thick slabs and walls.

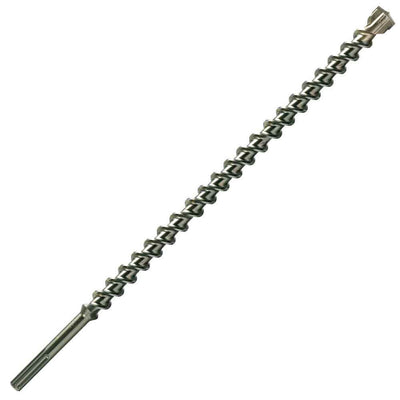

  • ITM X-Cutter SDS-Max bits with a 4-cutter head from 3/8" to 2", at 13", 17", 21", 23", 36" and 52" overall.
  • SDS-Plus bits 1/2" to 1-1/4" from the BOHR, eVolution and Redline lines, including 36" long bits for deep holes in a smaller hammer.
  • SDS-Max tunnel drills 1-1/2" to 3-1/8", 22" and 39" long, for through-holes that do not need a clean core.
  • SDS-Max tapered extensions (8" and 18") and an SDS-Max to SDS-Plus adapter.

Wedge and screw anchors drill at the anchor's nominal size, so a 3/4" anchor takes a 3/4" bit. Start a long bit straight with light pressure, and pull it back often to clear the flutes. Drilling, coring and cutting concrete releases respirable crystalline silica. Run a shroud on a HEPA-filtered extractor or cut wet where the job allows, and follow your company's exposure control plan.

Free shipping on orders over $200. Trade accounts can reorder in a click from My Toolbox, or call (833) 438-6657.

Rack seismic frames3/4" SDS-Max X-Cutter The common rack-frame anchor is 3/4". The X-Cutter 3/4" comes in 13", 17", 21" and 36" lengths for slabs of any thickness.
Smaller equipment padsSDS-Plus 1/2" to 3/4" For PDU and CRAH pads in a smaller hammer, the same sizes in SDS-Plus 2-cutter and 4-cutter bits.See the range →

Common questions

What bit do we use for a 3/4" KB-TZ or Strong-Bolt wedge anchor?

A 3/4" bit, drilled to the embedment on the anchor sheet. Wedge and screw anchors use a hole the same nominal size as the anchor; only drop-ins use an oversized stop bit.

How long a bit do we need through an 18" slab?

Pick a usable length longer than the slab plus the embedment you need below it. The X-Cutter SDS-Max 21" and 23" overall bits give 16" to 18" of usable length; the 36" and 52" bits go further.

Do the SDS-Max bits fit any brand of hammer?

Yes. SDS-Max is a universal chuck, so these bits fit any SDS-Max rotary hammer.
