Walter  |  SKU: 01V049

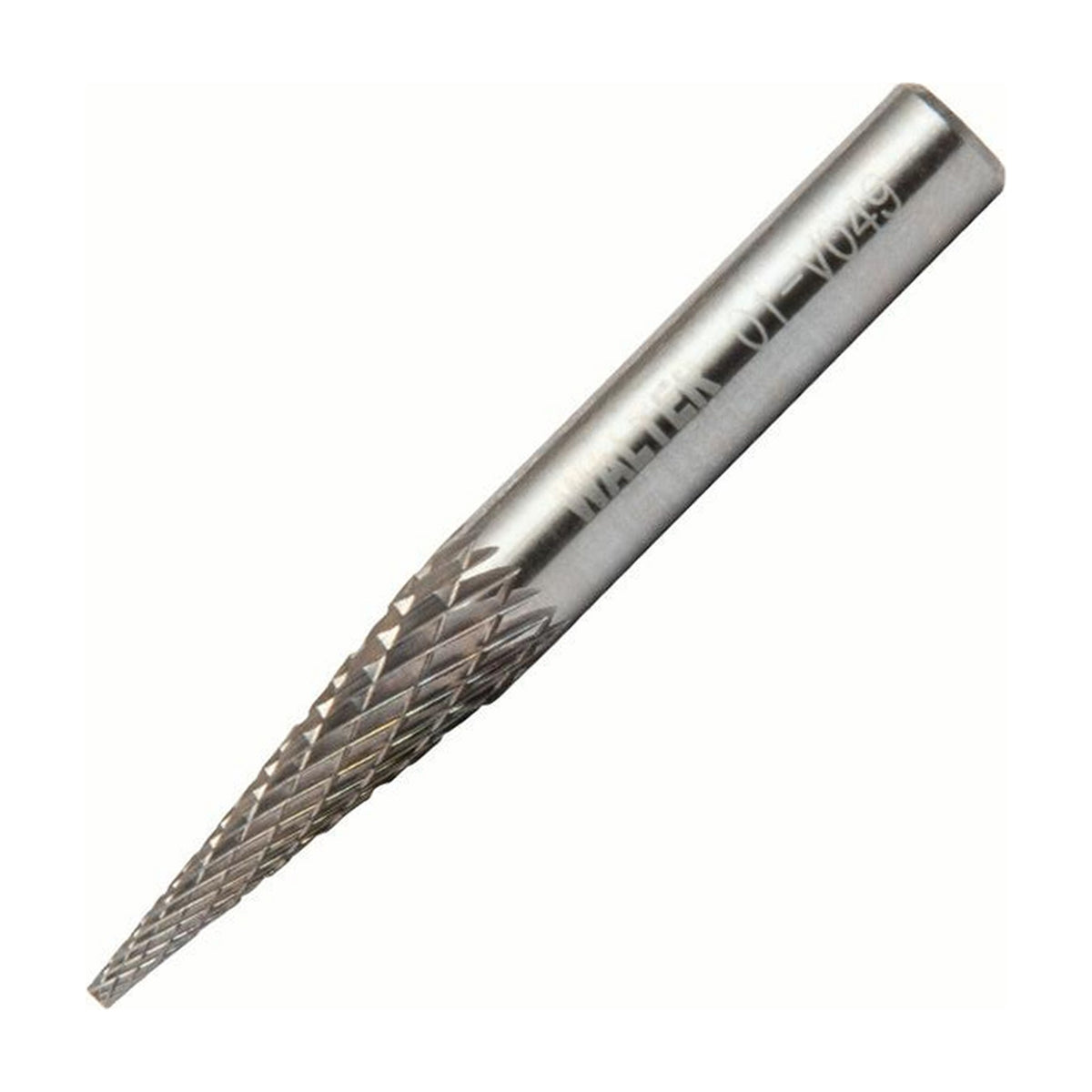

1/4" x 1" SM-3 Conical Carbide Burr, Double Cut

$92.02
Flat $15 shipping · free over $200
$92.02 Qty 1

Walter's 01V burrs are the heavy-duty end of the carbide burr range: solid tungsten carbide heads on a 1/4" shank, brazed with a high-strength joint that is built to stop the head snapping off the shank under load. Double cut means two sets of flutes crossing each other, which breaks the swarf into small chips instead of long curls — you get more control, a finer finish and far less grabbing than a single cut burr, which is why it is the cut most shops run on steel and stainless. Walter grinds these for concentricity and balance, so they run true without the vibration that chatters a finish and shortens tool life. This is the SM-3: a 1/4" conical head with a 1" length of cut on a 1/4" shank. Surface machining and narrow contour work.

    Specifications:

  • Head style: SM-3 — Conical
  • Burr diameter: 1/4"
  • Length of cut: 1"
  • Shank diameter: 1/4"
  • Cut: Double Cut
  • Material: Tungsten Carbide
  • Maximum speed: 70,000 RPM
  • Part number: Walter 01V049
  • Country of origin: China
  • Sold as: Each

    Features:

  • Solid tungsten carbide head
  • High-strength brazed joint, built to resist breakage
  • Ground for concentricity and balance, so it runs without vibration
  • Flute geometry clears chips from tip to base

    Applications:

  • Deburring and edge breaking after machining
  • Weld dressing and blending
  • Die and mould work
  • Opening and shaping holes and slots

    For use on:

  • Carbon Steel
  • Stainless Steel
  • Hardened Steel (45–60 Rc)
  • Nickel Chrome Steel
  • Weldments
  • Cast Iron
  • Titanium
  • Inconel
  • Brass
  • Bronze
  • Fiberglass
  • Hard Rubber
  • Plastics

    Runs in:

  • Die Grinder
  • Air Grinder
