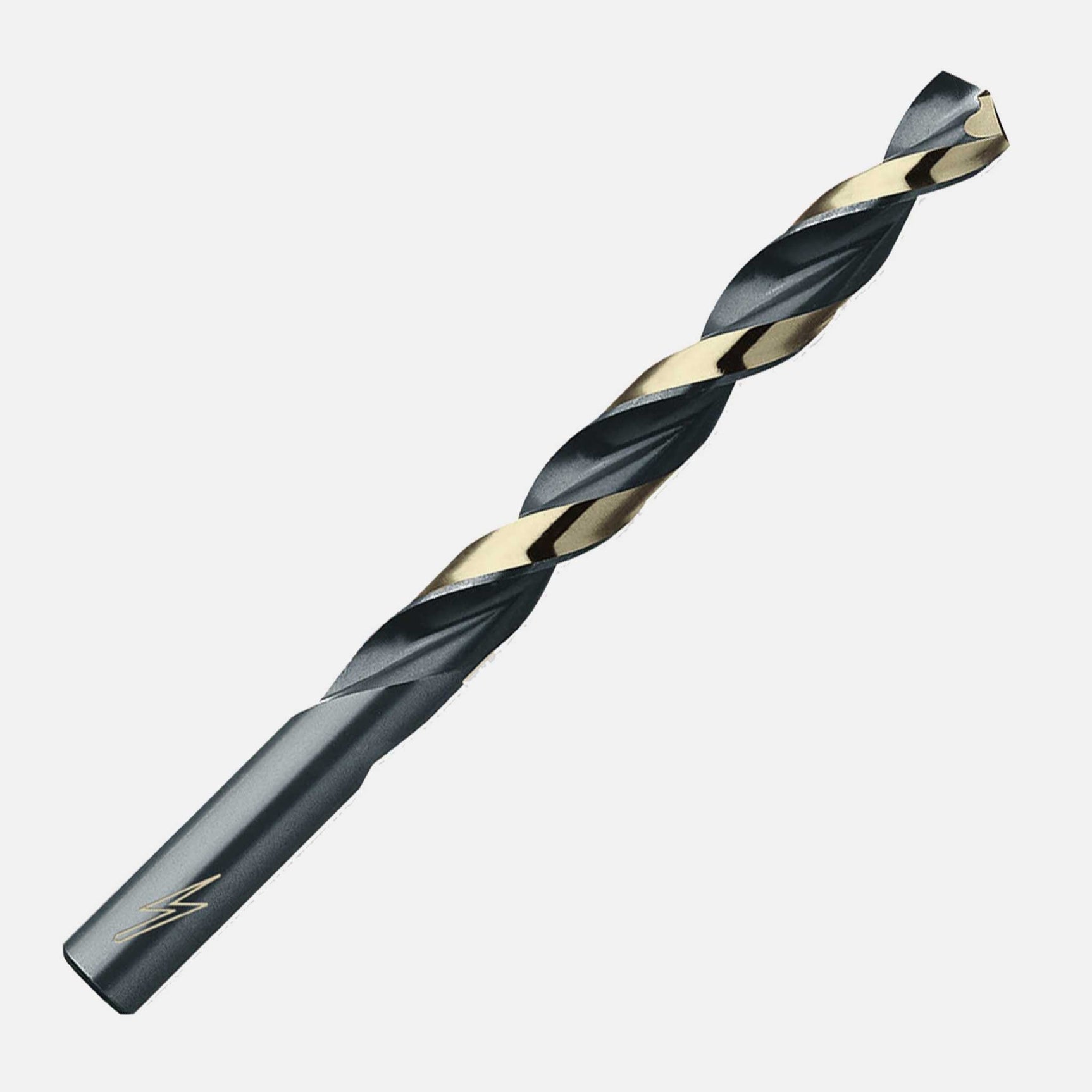

Q - 135° HD Black & Gold ThunderBit®

Size Decimal Flute Length Overall Length Tube Stock # Tube Pkg
A .2340 2-5/8 3-7/8 012701 12
B .2380 2-3/4 4 012702 12
C .2420 2-3/4 4 012703 12
D .2460 2-3/4 4 012704 12
E .2500 2-3/4 4 012705 12
F .2570 2-7/8 4-1/8 012706 12
G .2610 2-7/8 4-1/8 012707 12
H .2660 2-7/8 4-1/8 012708 12
I .2720 2-7/8 4-1/8 012709 12
J .2770 2-7/8 4-1/8 012710 12
K .2810 2-15/16 4-1/4 012711 12
L .2900 2-15/16 4-1/4 012712 12
M .2950 3-1/16 4-3/8 012713 12
N .3020 3-1/16 4-3/8 012714 12
O .3160 3-3/16 4-1/2 012715 6
P .3230 3-5/16 4-5/8 012716 6
Q .3320 3-7/16 4-3/4 012717 6
R .3390 3-7/16 4-3/4 012718 6
S .3480 3-1/2 4-7/8 012719 6
T .3580 3-1/2 4-7/8 012720 6
U .3680 3-5/8 5 012721 6
V .3770 3-5/8 5 012722 6
W .3860 3-3/4 5-1/8 012723 6
X .3970 3-3/4 5-1/8 012724 6
Y .4040 3-7/8 5-1/4 012725 6
Z .4130 3-7/8 5-1/4 012726 6
