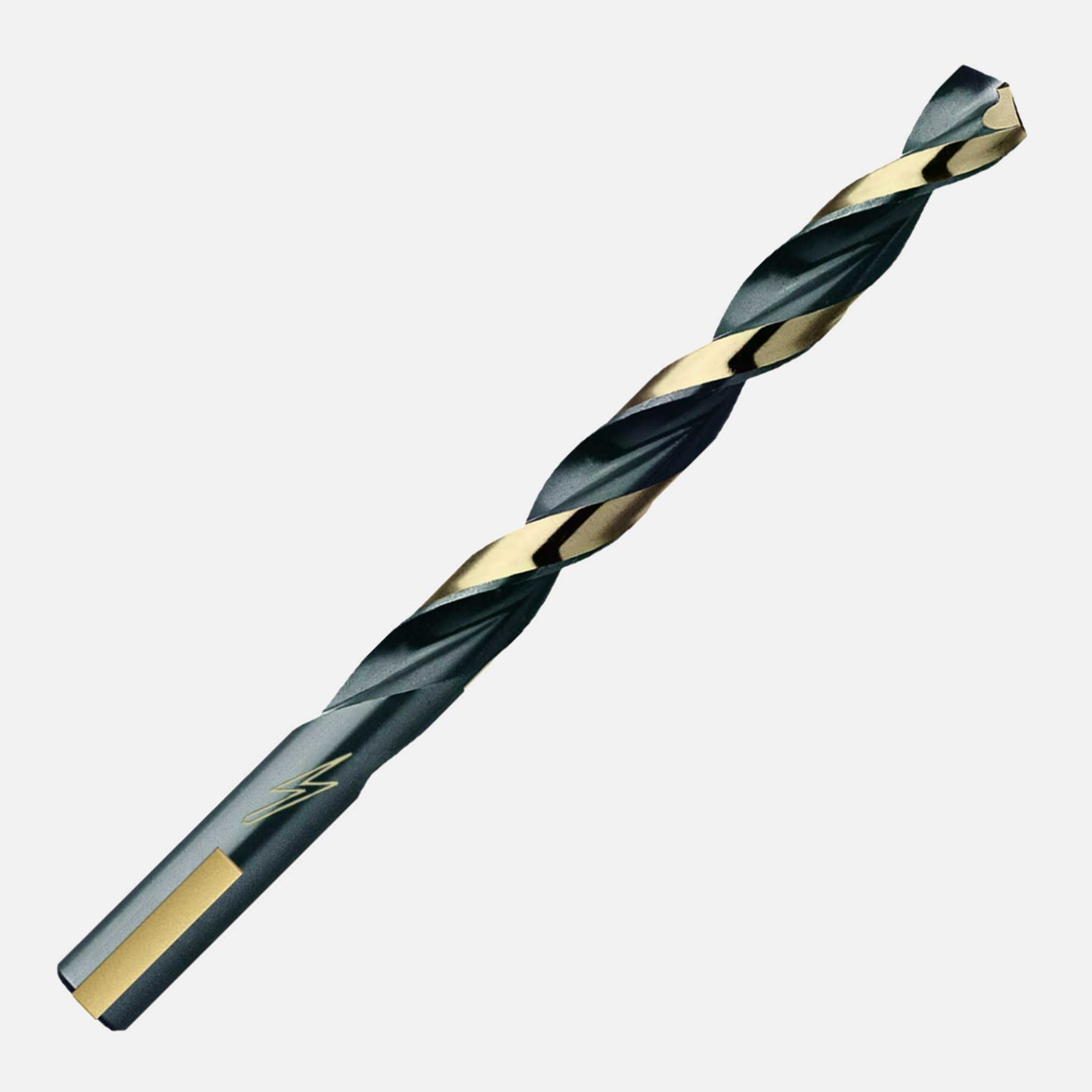

#30 135° HD (3-Flats) ThunderBit®

Size Decimal Flute Length Overall Length Tube Stock # Tube Pkg
60* .0400 11/16 1-5/8 014660 12
59* .0410 11/16 1-5/8 014659 12
58* .0420 11/16 1-5/8 014658 12
57* .0430 3/4 1-3/4 014657 12
56* .0465 3/4 1-3/4 014656 12
55* .0520 7/8 1-7/8 014655 12
54* .0550 7/8 1-7/8 014654 12
53* .0595 7/8 1-7/8 014653 12
52 .0635 7/8 1-7/8 014652 12
51 .0670 1 2 014651 12
50 .0700 1 2 014650 12
49 .0730 1 2 014649 12
48 .0760 1 2 014648 12
47 .0785 1 2 014647 12
46 .0810 1-1/8 2-1/8 014646 12
45 .0820 1-1/8 2-1/8 014645 12
44 .0860 1-1/8 2-1/8 014644 12
43 .0890 1-1/4 2-1/4 014643 12
42 .0935 1-1/4 2-1/4 014642 12
41 .0960 1-3/8 2-3/8 014641 12
40 .0980 1-3/8 2-3/8 014640 12
39 .0995 1-3/8 2-3/8 014639 12
38 .1015 1-7/16 2-1/2 014638 12
37 .1040 1-7/16 2-1/2 014637 12
36 .1065 1-7/16 2-1/2 014636 12
35 .1100 1-1/2 2-5/8 014635 12
34 .1110 1-1/2 2-5/8 014634 12
33 .1130 1-1/2 2-5/8 014633 12
32 .1160 1-5/8 2-3/4 014632 12
31 .1200 1-5/8 2-3/4 014631 12
30 .1285 1-5/8 2-3/4 014630 12
29 .1360 1-3/4 2-7/8 014629 12
28 .1405 1-3/4 2-7/8 014628 12
27 .1440 1-7/8 3 014627 12
26 .1470 1-7/8 3 014626 12
25 .1495 1-7/8 3 014625 12
24 .1520 2 3-1/8 014624 12
23 .1540 2 3-1/8 014623 12
22 .1570 2 3-1/8 014622 12
21 .1590 2-1/8 3-1/4 014621 12
20 .1610 2-1/8 3-1/4 014620 12
19 .1660 2-1/8 3-1/4 014619 12
18 .1695 2-1/8 3-1/4 014618 12
17 .1730 2-3/16 3-3/8 014617 12
16 .1770 2-3/16 3-3/8 014616 12
15 .1800 2-3/16 3-3/8 014615 12
14 .1820 2-3/16 3-3/8 014614 12
13 .1850 2-5/16 3-1/2 014613 12
12** .1890 2-5/16 3-1/2 014612 12
11** .1910 2-5/16 3-1/2 014611 12
10** .1935 2-7/16 3-5/8 014610 12
9** .1960 2-7/16 3-5/8 014609 12
8** .1990 2-7/16 3-5/8 014608 12
7** .2010 2-7/16 3-5/8 014607 12
6** .2040 2-1/2 3-3/4 014606 12
5** .2055 2-1/2 3-3/4 014605 12
4** .2090 2-1/2 3-3/4 014604 12
3** .2130 2-1/2 3-3/4 014603 12
2** .2210 2-5/8 3-7/8 014602 12
1** .2280 2-5/8 3-7/8 014601 12
