Flap Disc vs Grinding Wheel on a Weld

Should I use a flap disc or a grinding wheel on a weld?

Use a flap disc on a weld when the bead is low to medium and you want it flush and smooth in one pass. Use a grinding wheel when the bead stands tall, there is spatter or slag to knock off, or you are prepping a bevel. On a heavy fillet or a multi-pass butt weld, do both: the wheel removes the crown, and the flap disc blends it into the base metal.

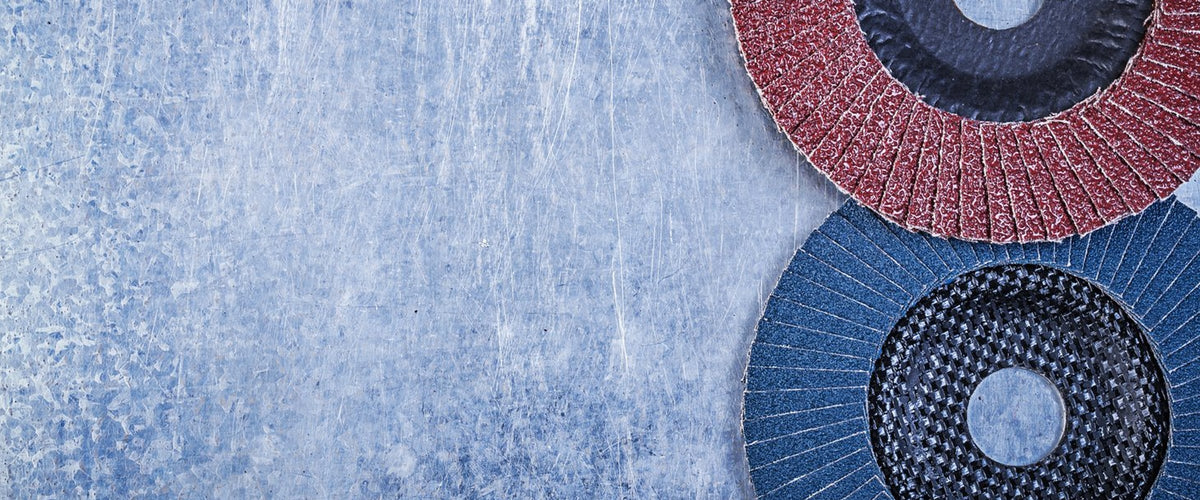

A grinding wheel is a solid, bonded disc of abrasive. It cuts hard and lasts, but it is rigid, so it digs in and leaves a rough, uneven surface. A flap disc is a ring of overlapping abrasive flaps glued to a backing plate. As the flaps wear, fresh grain is exposed, so it keeps cutting while it smooths. People also call a grinding wheel a grinding disc or a depressed center wheel.

Verdict: A flap disc handles most welds alone and leaves a finish you can paint. Add a grinding wheel first only when the bead is tall or dirty.

Grinding angles are typical ranges from abrasive makers. Prices checked on eldoradotools.com on Oct 21, 2026.

What is a flap disc used for?

A flap disc is used on an angle grinder to grind, blend and finish metal in one step. On welds, that means taking a bead down flush, blending it into the plate, and leaving a surface ready for paint or coating. Flap discs also deburr cut edges, remove rust and mill scale, and clean up before welding.

Walter lists six jobs for its ALLSTEEL TURBO discs: blending welds, general grinding, finishing for paint, polishing, deburring and cleaning off rust and paint. They are rated for steel and stainless steel.

Can you grind a weld with just a flap disc?

Yes, you can grind a weld with just a flap disc, and on most welds you should. A 40 grit flap disc removes a normal bead almost as fast as a wheel and leaves a far better surface. Switch to a grinding wheel first only when the bead is more than about 1/8 in. tall, or when there is slag or heavy spatter that would chew up the flaps.

Never grind with a cut-off wheel. A cut-off wheel is thin and has no side strength, so it can shatter.

Which flap disc or grinding wheel for your weld?

Pick by the job, then by your grinder size and spindle. Every disc and wheel here is Walter, sold by the box and priced per piece.

What grit flap disc for welds?

For welds, use a 40 grit flap disc to remove the bead, 60 grit to blend it in, and 80 grit to finish before paint. If you only buy one, buy 60 grit: it removes a normal bead and leaves a clean blend. Our ALLSTEEL TURBO discs cost the same at every grit, so pick by the job, not the price.

Hubbed 5/8-11 versions for spin-on grinders: 06Y454, 06Y456, 06Y458 (4-1/2 in., $6.00) and 06Y504, 06Y506, 06Y508 (5 in., $7.32). Prices checked on eldoradotools.com on Oct 21, 2026. Browse them all in our flap discs collection.

Type 27 vs Type 29 flap disc: which for welds?

A Type 27 flap disc is flat, and a Type 29 is angled like a shallow cone. A Type 27 is better for blending welds on flat plate and for finishing, because you hold it nearly flat and it leaves a smooth surface. A Type 29 puts more flap on the work at a steeper angle, so it removes more on edges and fillet welds. Abrasive makers give about 0 to 15 degrees for a Type 27 and 15 to 25 degrees for a Type 29. [CHECK against a named source]

We stock Type 27 (7/8 in. arbor) and Type 27S (5/8-11 threaded hub) flap discs. We do not stock Type 29 today. For a fillet weld on a Type 27, tilt the disc onto its edge and let the outer flaps work, or knock the bead down with a Type 27 grinding wheel first.

Flap disc or grinding wheel on stainless steel welds?

On stainless steel welds, use a flap disc made free of iron, sulfur and chlorine, and keep it for stainless only. Iron left on stainless from a carbon steel disc rusts later. Walter rates the ALLSTEEL TURBO discs at less than 0.1% iron, sulfur and chlorine, so they will not contaminate stainless. The HP XX grinding wheel is also rated by Walter for steel and stainless steel.

Stainless holds heat, and heat leaves a blue or gold tint. Use light pressure, keep the disc moving, and let the part cool between passes. Our drill speed chart explains why heat ruins tools and finishes the same way.

Our flap discs and grinding wheels for welds

All rated 13,300 RPM at 4-1/2 in. Earlier HP XX stock is labelled ALLSTEEL XX; it is the same wheel. Prices checked on eldoradotools.com on Oct 21, 2026. See all wheels in our grinding wheels collection, or everything for the trade in Metal Fabrication & Welding.

Why does my flap disc wear out so fast on welds?

Foundation crews prepping straps and plates will find the rest of the kit in our foundation repair tools guide.

Not sure which disc fits your grinder? Call our team at (833) 4-ETOOLS or email sales@eldoradotools.com.

First published [date], with prices checked on the store Oct 21, 2026.
