Triumph | SKU: 075020

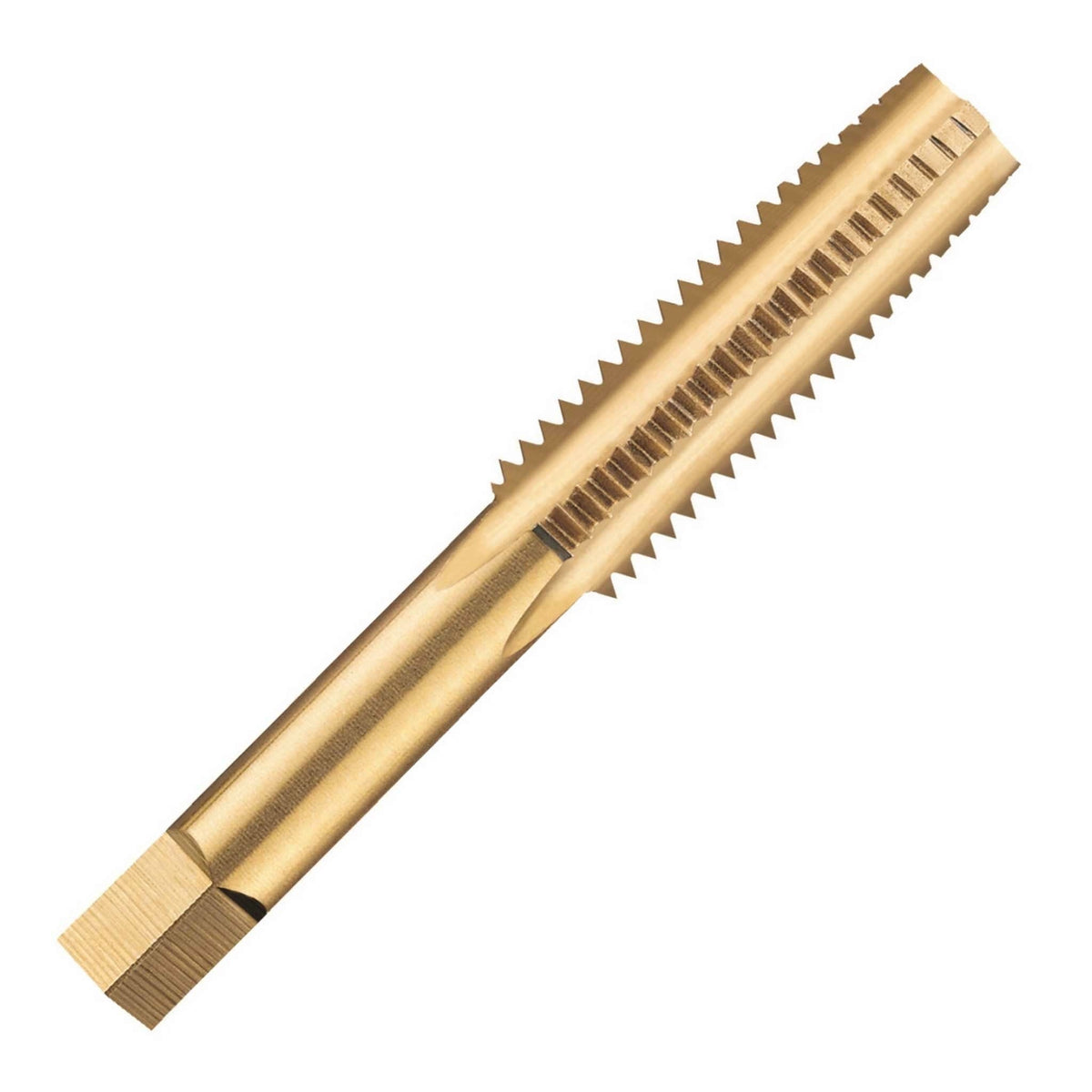

M3 x 0.5 Metric ThunderTap Taper

Name: M3 x 0.5 Metric ThunderTap Taper
Brand: Triumph
SKU: 075020
Price: 32.52 USD
Availability: InStock

$10.84

Flat $15 shipping · free over $200

$10.84 Qty 3

✓Free shipping on orders over $200
✓Secure, encrypted checkout
•Questions? Call 833-438-6657, 8 AM to 4 PM MST
•Buying for a crew? Order on credit with a contractor account

About This Item:

The M3 x 0.5 ThunderTap metric hand tap is a straight flute tap in high-speed steel with a bronze oxide finish, tapered (7-10 threads) chamfer, for general hand and production tapping. Straight flute taps can be used in through or blind holes. Sold individually, minimum order 3.

Specifications:

Part Number: 075020
Size: M3 x 0.5
Thread Type: Metric
Thread Limit: D3
Number of Flutes: 3
Tap Drill Size: #39
Overall Length: 1-15/16”
Thread Length: 5/8”
Sold as: Sold individually, minimum order 3

Features:

Material: High Speed Steel
Coating/Finish: Bronze Oxide
Chamfer: Taper (7-10 threads)
Flute: Straight Flute
Bronze surface treatment for high lubricity
Made from premium-grade high-speed steel

For use in:

Steel
Stainless Steel
Cast Iron

About this Manufacturer:

Triumph is a manufacturer with over 60 years of experience. Its 70,000 square foot facility in Chisholm, MN produces tools on state-of-the-art machinery.

Part # Size Type Thread Limit Flutes Drill Size Overall Length Thread Length
075000 M1.6 x 0.35 Taper Tap D3 2 #55 1-5/8” 5/16”
075001 M1.6 x 0.35 Plug Tap D3 2 #55 1-5/8” 5/16”
075003 M1.6 x 0.35 Spiral Point Plug Tap D3 2 #55 1-5/8” 5/16”
075004 M1.8 x 0.35 Taper Tap D3 2 #53 1-11/16” 3/8”
075005 M1.8 x 0.35 Plug Tap D3 2 #53 1-11/16” 3/8”
075006 M1.8 x 0.35 Bottoming Tap D3 2 #53 1-11/16” 3/8”
075007 M1.8 x 0.35 Spiral Point Plug Tap D3 2 #53 1-11/16” 3/8”
075008 M2 x 0.4 Taper Tap D3 3 #52 1-3/4” 7/16”
075009 M2 x 0.4 Plug Tap D3 3 #52 1-3/4” 7/16”
075010 M2 x 0.4 Bottoming Tap D3 3 #52 1-3/4” 7/16”
075011 M2 x 0.4 Spiral Point Plug Tap D3 2 #52 1-3/4” 7/16”
075012 M2.2 x 0.45 Taper Tap D3 3 #50 1-3/4” 7/16”
075013 M2.2 x 0.45 Plug Tap D3 3 #50 1-3/4” 7/16”
075014 M2.2 x 0.45 Bottoming Tap D3 3 #50 1-3/4” 7/16”
075015 M2.2 x 0.45 Spiral Point Plug Tap D3 2 #50 1-3/4” 7/16”
075016 M2.5 x 0.45 Taper Tap D3 3 #46 1-13/16” 1/2”
075017 M2.5 x 0.45 Plug Tap D3 3 #46 1-13/16” 1/2”
075018 M2.5 x 0.45 Bottoming Tap D3 3 #46 1-13/16” 1/2”
075020 M3 x 0.5 Taper Tap D3 3 #39 1-15/16” 5/8”
075021 M3 x 0.5 Plug Tap D3 3 #39 1-15/16” 5/8”
075022 M3 x 0.5 Bottoming Tap D3 3 #39 1-15/16” 5/8”
075032 M4.5 x 0.75 Taper Tap D4 4 #25 2-3/8” 7/8”
075034 M4.5 x 0.75 Bottoming Tap D4 4 #25 2-3/8” 7/8”
075035 M4.5 x 0.75 Spiral Point Plug Tap D4 2 #25 2-3/8” 7/8”
075047 M7 x 1 Spiral Point Plug Tap D5 2 B 2-23/32” 1-1/8”
075064 M10 x 1.25 Spiral Point Plug Tap D5 3 11/32” 2-15/16” 1-1/4”
075024 M3.5 x 0.6 Taper Tap D4 3 #32 1-15/16” 5/8”
075025 M3.5 x 0.6 Plug Tap D4 3 #32 1-15/16” 5/8”
075026 M3.5 x 0.6 Bottoming Tap D4 3 #32 1-15/16” 5/8”
075093 M18 x 2.5 Plug Tap D7 4 39/64” 4-1/32” 1-13/16”
075151 M2 x 0.4 3-Pc Set D3 3 #52 1-3/4” 7/16”
075152 M3 x 0.5 3-Pc Set D3 3 #39 1-15/16” 5/8”
075153 M4 x 0.7 3-Pc Set D4 4 #30 2-1/8” 3/4”
075154 M5 x 0.8 3-Pc Set D4 4 #19 2-3/8” 7/8”
075156 M7 x 1 3-Pc Set D5 4 B 2-23/32” 1-1/8”
075157 M8 x 1.25 3-Pc Set D5 4 H 2-23/32” 1-1/8”
075158 M10 x 1.5 3-Pc Set D6 4 R 2-15/16” 1-1/4”
075159 M12 x 1.75 3-Pc Set D6 4 13/32” 3-3/8” 1-21/32”
075160 M14 x 2 3-Pc Set D7 4 15/32” 3-13/16” 1-21/32”
075161 M16 x 2 3-Pc Set D7 4 35/64” 3-13/16” 1-13/16”
075162 M18 x 2.5 3-Pc Set D7 4 39/64” 4-1/32” 1-13/16”
075164 M24 x 3 3-Pc Set D8 4 21.00mm 4-29/32” 2-7/32”
075072 M12 x 1.25 Spiral Point Plug Tap D5 3 27/64” 3-3/8” 1-21/32”
075077 M14 x 2 Spiral Point Plug Tap D7 3 15/32” 3-13/16” 1-21/32”
075081 M14 x 1.5 Spiral Point Plug Tap D6 3 1/2” 3-19/32” 1-21/32”
075090 M16 x 1.5 Spiral Point Plug Tap D6 3 37/64” 3-13/16” 1-13/16”
075107 M22 x 2.5 Plug Tap D7 4 19.50mm 4-11/16” 2-7/32”
075110 M22 x 1.5 Plug Tap D6 4 20.50mm 4-11/16” 2-7/32”
075114 M24 x 3 Plug Tap D8 4 21.00mm 4-29/32” 2-7/32”
