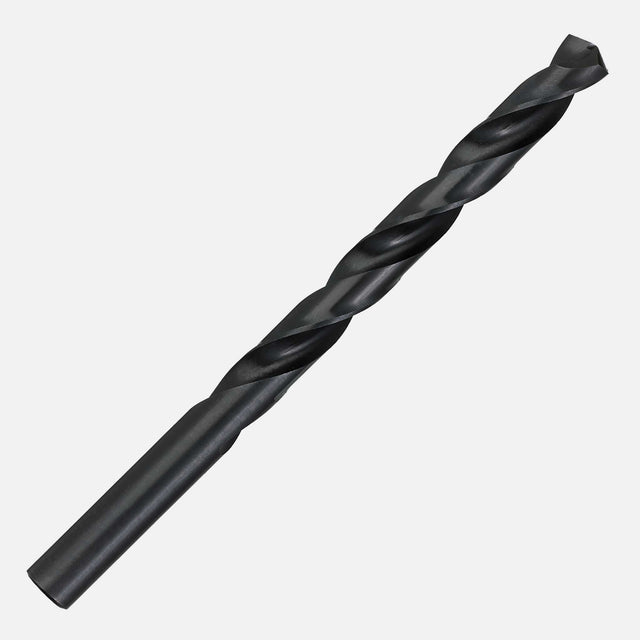

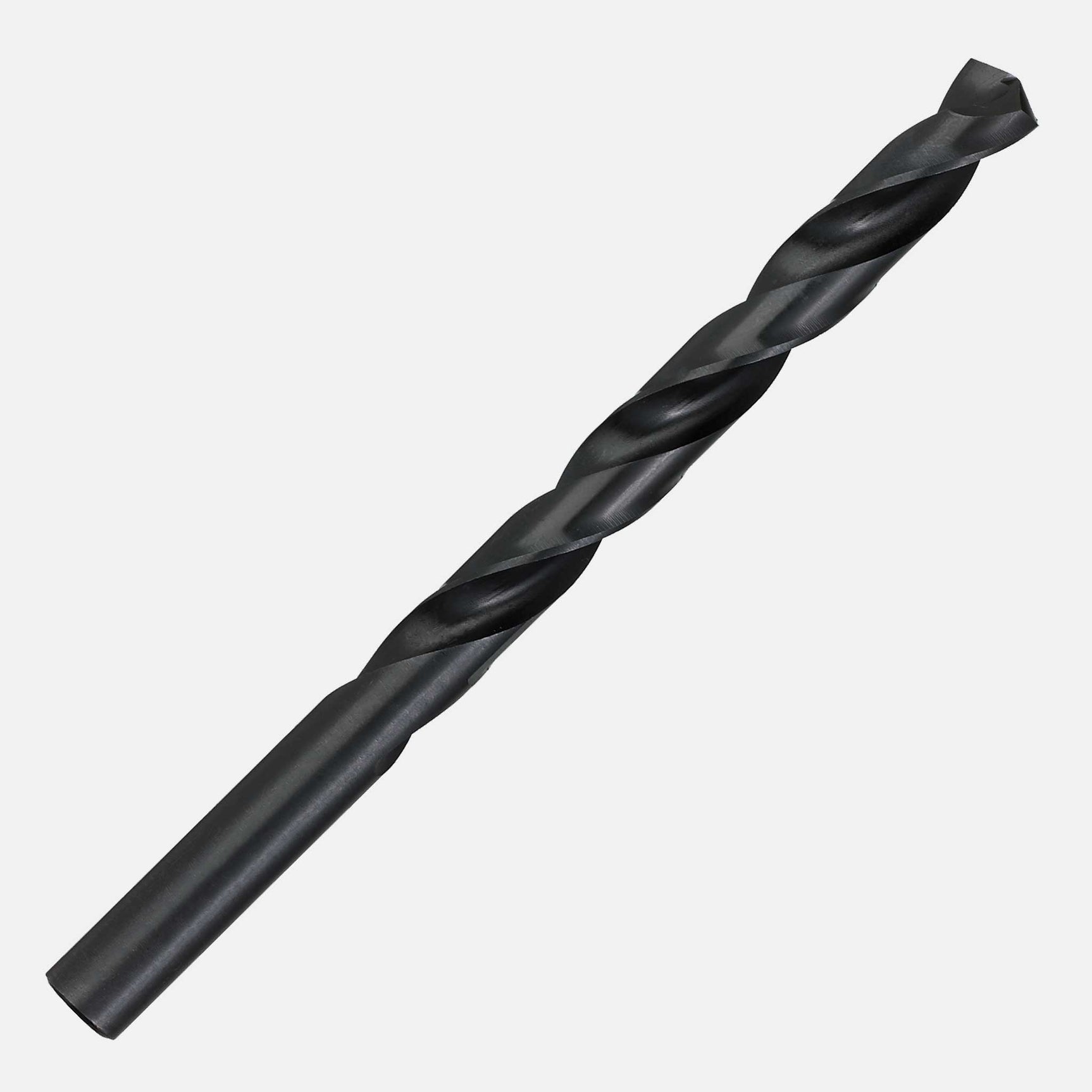

51# 135° HD Black Oxide Jobber Drills

Size Decimal Flute Length Overall Length Tube Stock # Tube Pkg Bulk Stock # Bulk Pkg
60 .0400 11/16 1-5/8 012260 12
59 .0410 11/16 1-5/8 012259 12 012259.20 288
58 .0420 11/16 1-5/8 012258 12 012258.20 288
57 .0430 3/4 1-3/4 012257 12 012257.20 288
56 .0465 3/4 1-3/4 012256 12 012256.20 288
55 .0520 7/8 1-7/8 012255 12 012255.20 288
54 .0550 7/8 1-7/8 012254 12 012254.20 288
53 .0595 7/8 1-7/8 012253 12 012253.20 288
52 .0635 7/8 1-7/8 012252 12 012252.20 288
51 .0670 1 2 012251 12
50 .0700 1 2 012250 12
49 .0730 1 2 012249 12
48 .0760 1 2 012248 12
47 .0785 1 2 012247 12
46 .0810 1-1/8 2-1/8 012246 12
45 .0820 1-1/8 2-1/8 012245 12
44 .0860 1-1/8 2-1/8 012244 12
43 .0890 1-1/4 2-1/4 012243 12
42 .0935 1-1/4 2-1/4 012242 12
41 .0960 1-3/8 2-3/8 012241 12
40 .0980 1-3/8 2-3/8 012240 12 012240.20 288
39 .0995 1-3/8 2-3/8 012239 12
38 .1015 1-7/16 2-1/2 012238 12
37 .1040 1-7/16 2-1/2 012237 12
36 .1065 1-7/16 2-1/2 012236 12 012236.20 288
35 .1100 1-1/2 2-5/8 012235 12
34 .1110 1-1/2 2-5/8 012234 12
33 .1130 1-1/2 2-5/8 012233 12
32 .1160 1-5/8 2-3/4 012232 12
31 .1200 1-5/8 2-3/4 012231 12 012231.20 288
30 .1285 1-5/8 2-3/4 012230 12 012230.20 288
29 .1360 1-3/4 2-7/8 012229 12 012229.20 288
28 .1405 1-3/4 2-7/8 012228 12 012228.20 288
27 .1440 1-7/8 3 012227 12
26 .1470 1-7/8 3 012226 12
25 .1495 1-7/8 3 012225 12 012225.20 288
24 .1520 2 3-1/8 012224 12
23 .1540 2 3-1/8 012223 12
22 .1570 2 3-1/8 012222 12
21 .1590 2-1/8 3-1/4 012221 12 012221.20 288
20 .1610 2-1/8 3-1/4 012220 12 012220.20 288
19 .1660 2-1/8 3-1/4 012219 12
18 .1695 2-1/8 3-1/4 012218 12
17 .1730 2-3/16 3-3/8 012217 12
16 .1770 2-3/16 3-3/8 012216 12 012216.20 288
15 .1800 2-3/16 3-3/8 012215 12
14 .1820 2-3/16 3-3/8 012214 12
13 .1850 2-5/16 3-1/2 012213 12
12 .1890 2-5/16 3-1/2 012212 12
11 .1910 2-5/16 3-1/2 012211 12
10 .1935 2-7/16 3-5/8 012210 12 012210.20 288
9 .1960 2-7/16 3-5/8 012209 12
8 .1990 2-7/16 3-5/8 012208 12
7 .2010 2-7/16 3-5/8 012207 12 012207.20 288
6 .2040 2-1/2 3-3/4 012206 12 012206.20 288
5 .2055 2-1/2 3-3/4 012205 12
4 .2090 2-1/2 3-3/4 012204 12
3 .2130 2-1/2 3-3/4 012203 12
2 .2210 2-5/8 3-7/8 012202 12 012202.20 288
1 .2280 2-5/8 3-7/8 012201 12 012201.20 288
