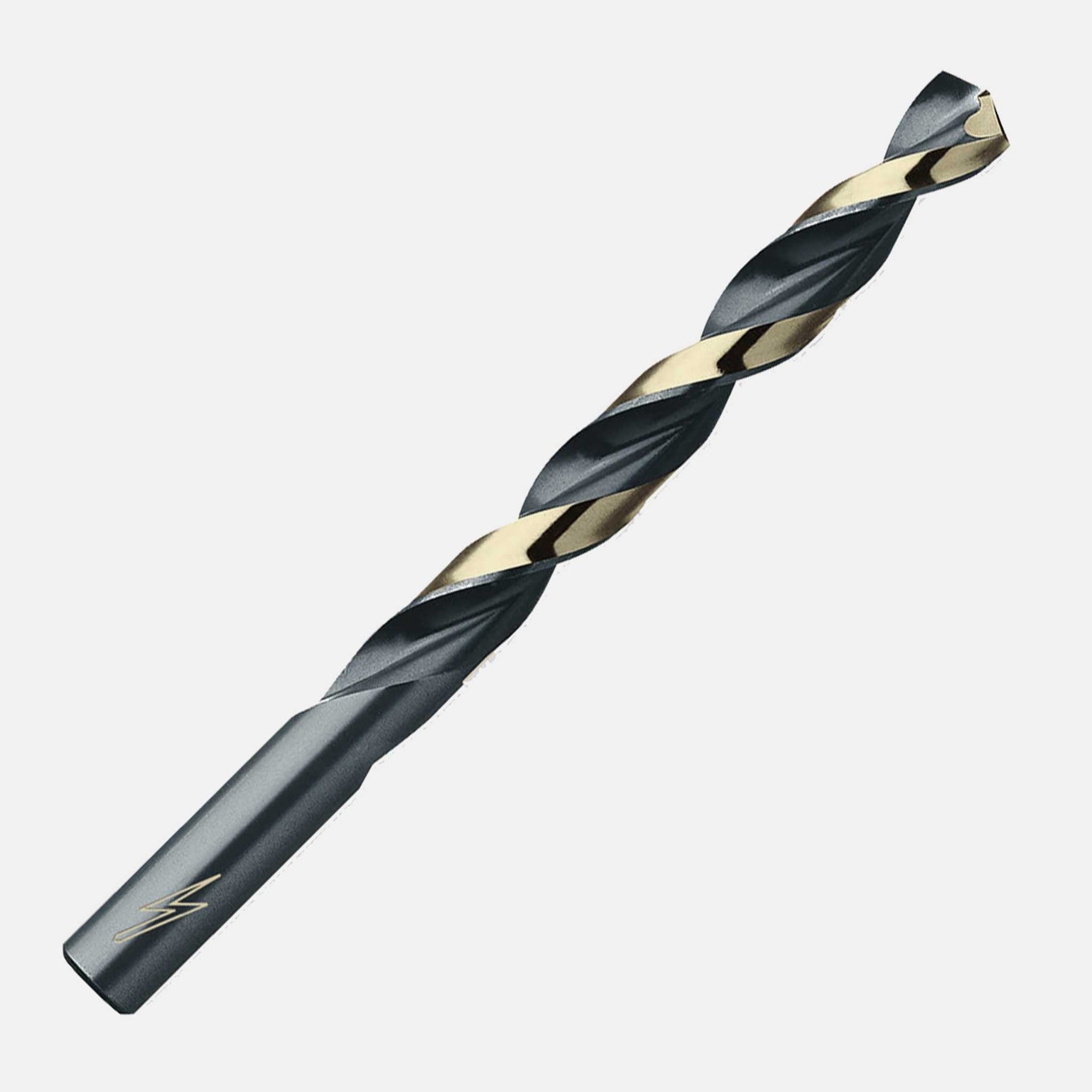

#3 135° HD Black & Gold ThunderBits®

Size Decimal Flute Length Overall Length Tube Stock # Tube Pkg
60 .0400 11/16 1-5/8 012660 12
59 .0410 11/16 1-5/8 012659 12
58 .0420 11/16 1-5/8 012658 12
57 .0430 3/4 1-3/4 012657 12
56 .0465 3/4 1-3/4 012656 12
55 .0520 7/8 1-7/8 012655 12
54 .0550 7/8 1-7/8 012654 12
53 .0595 7/8 1-7/8 012653 12
52 .0635 7/8 1-7/8 012652 12
51 .0670 1 2 012651 12
50 .0700 1 2 012650 12
49 .0730 1 2 012649 12
48 .0760 1 2 012648 12
47 .0785 1 2 012647 12
46 .0810 1-1/8 2-1/8 012646 12
45 .0820 1-1/8 2-1/8 012645 12
44 .0860 1-1/8 2-1/8 012644 12
43 .0890 1-1/4 2-1/4 012643 12
42 .0935 1-1/4 2-1/4 012642 12
41 .0960 1-3/8 2-3/8 012641 12
40 .0980 1-3/8 2-3/8 012640 12
39 .0995 1-3/8 2-3/8 012639 12
38 .1015 1-7/16 2-1/2 012638 12
37 .1040 1-7/16 2-1/2 012637 12
36 .1065 1-7/16 2-1/2 012636 12
35 .1100 1-1/2 2-5/8 012635 12
34 .1110 1-1/2 2-5/8 012634 12
33 .1130 1-1/2 2-5/8 012633 12
32 .1160 1-5/8 2-3/4 012632 12
31 .1200 1-5/8 2-3/4 012631 12
30 .1285 1-5/8 2-3/4 012630 12
29 .1360 1-3/4 2-7/8 012629 12
28 .1405 1-3/4 2-7/8 012628 12
27 .1440 1-7/8 3 012627 12
26 .1470 1-7/8 3 012626 12
25 .1495 1-7/8 3 012625 12
24 .1520 2 3-1/8 012624 12
23 .1540 2 3-1/8 012623 12
22 .1570 2 3-1/8 012622 12
21 .1590 2-1/8 3-1/4 012621 12
20 .1610 2-1/8 3-1/4 012620 12
19 .1660 2-1/8 3-1/4 012619 12
18 .1695 2-1/8 3-1/4 012618 12
17 .1730 2-3/16 3-3/8 012617 12
16 .1770 2-3/16 3-3/8 012616 12
15 .1800 2-3/16 3-3/8 012615 12
14 .1820 2-3/16 3-3/8 012614 12
13 .1850 2-5/16 3-1/2 012613 12
12 .1890 2-5/16 3-1/2 012612 12
11 .1910 2-5/16 3-1/2 012611 12
10 .1935 2-7/16 3-5/8 012610 12
9 .1960 2-7/16 3-5/8 012609 12
8 .1990 2-7/16 3-5/8 012608 12
7 .2010 2-7/16 3-5/8 012607 12
6 .2040 2-1/2 3-3/4 012606 12
5 .2055 2-1/2 3-3/4 012605 12
4 .2090 2-1/2 3-3/4 012604 12
3 .2130 2-1/2 3-3/4 012603 12
2 .2210 2-5/8 3-7/8 012602 12
1 .2280 2-5/8 3-7/8 012601 12
