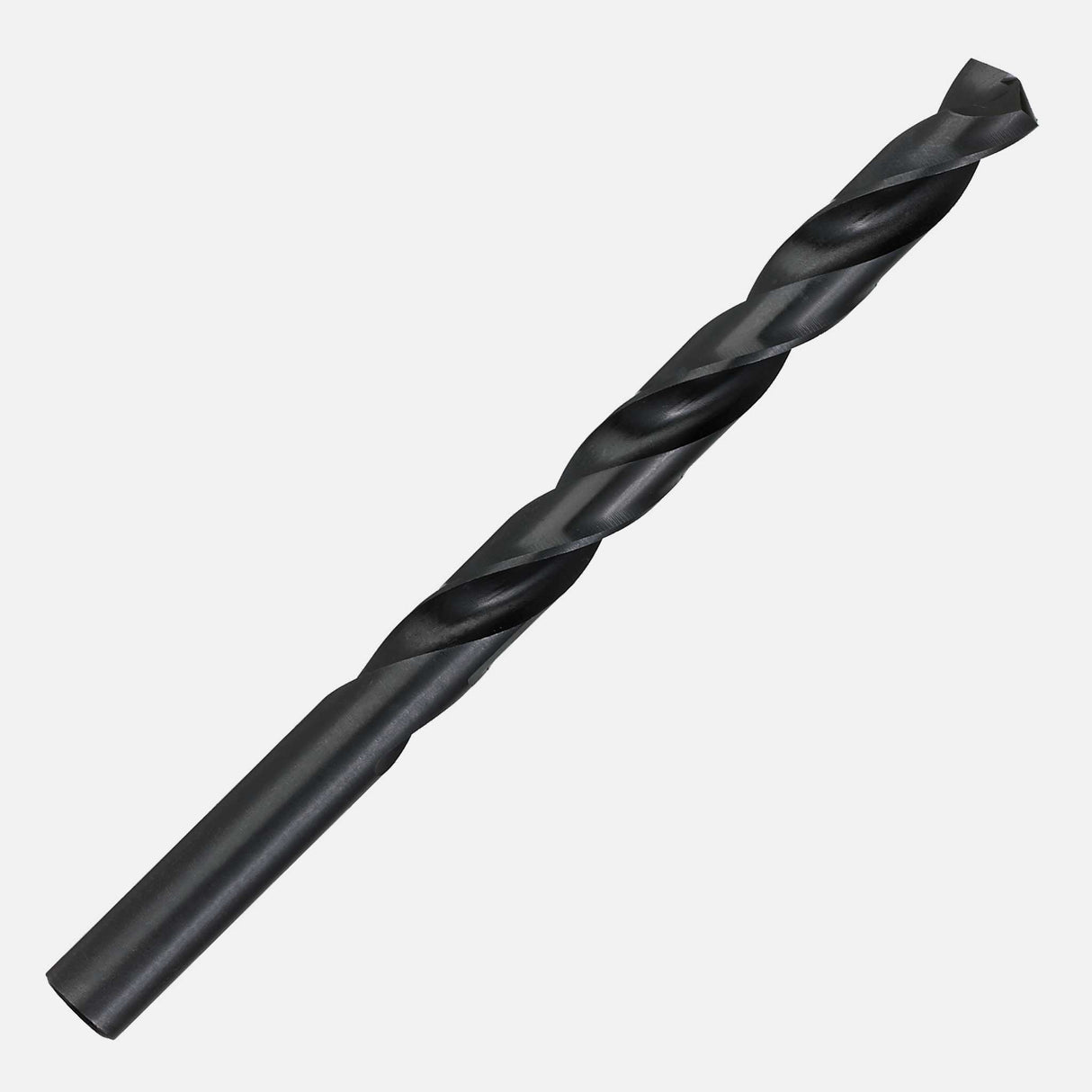

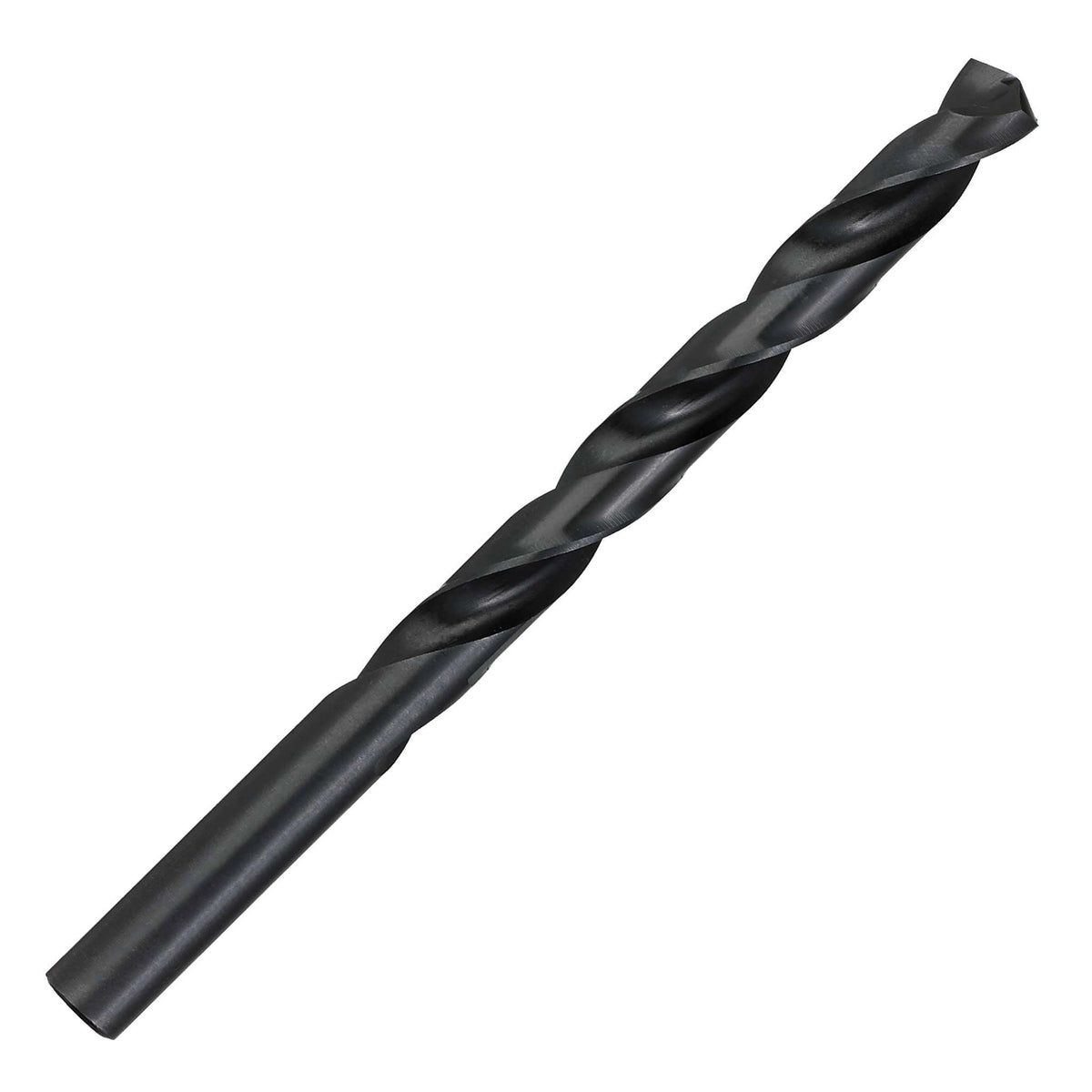

Z - 135° Black Oxide Jobber Drill Bit

Size Decimal Flute Length Overall Length Tube Stock # Tube Pkg
A .2340 2-5/8 3-7/8 013401 12
B .2380 2-3/4 4 013402 12
C .2420 2-3/4 4 013403 12
D .2460 2-3/4 4 013404 12
E .2500 2-3/4 4 013405 12
F .2570 2-7/8 4-1/8 013406 12
G .2610 2-7/8 4-1/8 013407 12
H .2660 2-7/8 4-1/8 013408 12
I .2720 2-7/8 4-1/8 013409 12
J .2770 2-7/8 4-1/8 013410 12
K .2810 2-15/16 4-1/4 013411 12
L .2900 2-15/16 4-1/4 013412 12
M .2950 3-1/16 4-3/8 013413 12
N .3020 3-1/16 4-3/8 013414 12
O .3160 3-3/16 4-1/2 013415 6
P .3230 3-5/16 4-5/8 013416 6
Q .3320 3-7/16 4-3/4 013417 6
R .3390 3-7/16 4-3/4 013418 6
S .3480 3-1/2 4-7/8 013419 6
T .3580 3-1/2 4-7/8 013420 6
U .3680 3-5/8 5 013421 6
V .3770 3-5/8 5 013422 6
W .3860 3-3/4 5-1/8 013423 6
X .3970 3-3/4 5-1/8 013424 6
Y .4040 3-7/8 5-1/4 013425 6
Z .4130 3-7/8 5-1/4 013426 6
