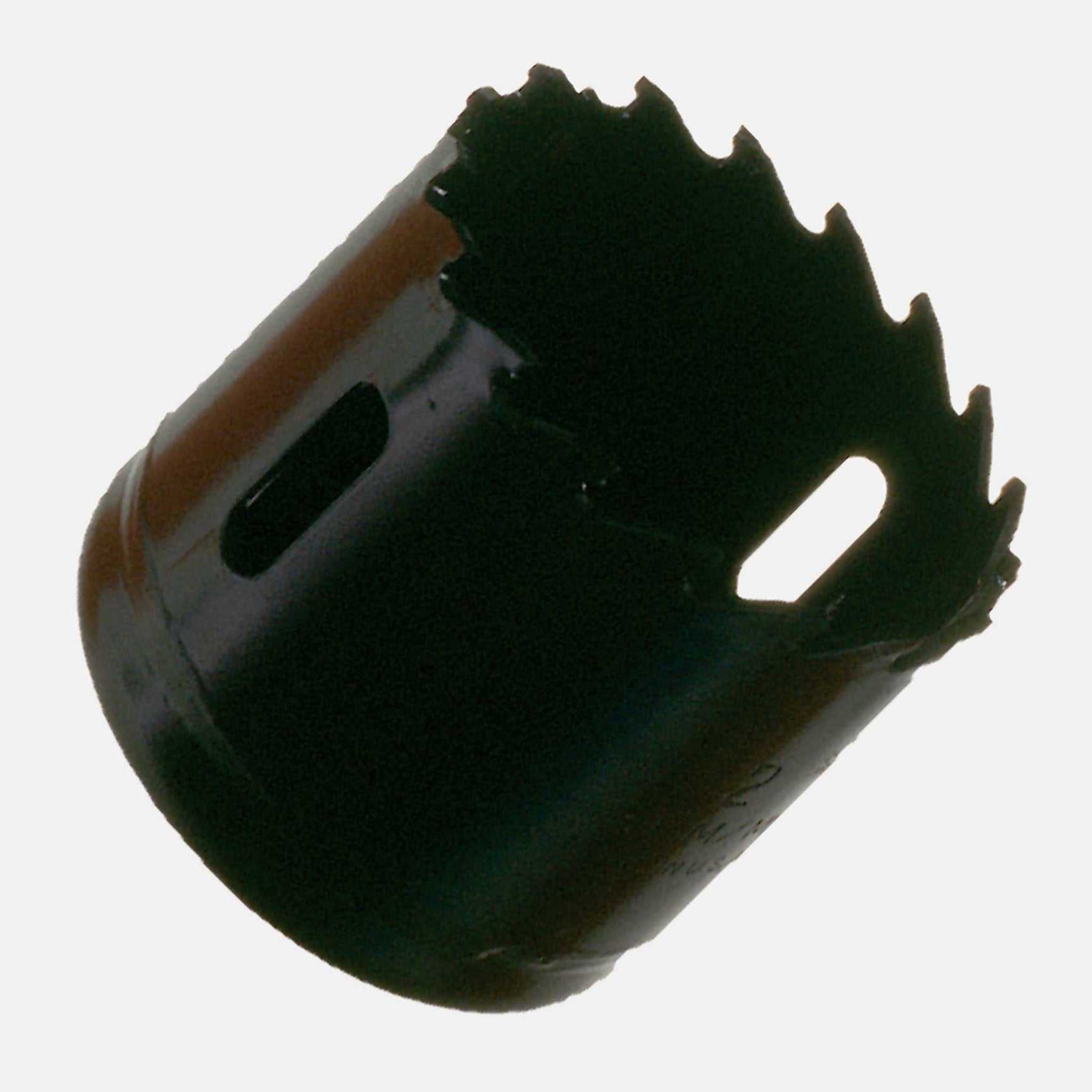

About this hole saw:
- Diameter: 1-11/16" (42.9 mm)
- Arbor: ARB-3, ARB-4 or ARB-5
- Tungsten Carbide Teeth
- Ground & Welded Set Teeth
- 3 Teeth Per Inch
- High Wear Resistance
- 1-1/2" Cutting Depth
- Black Finish
These High Quality Carbide Tipped Hole Saws are designed for use in abrasive materials such as particle board, fiberglass, cast iron, asbestos board, and formica. They are ideal for work where high performance & accuracy are needed. Saws have knockout holes for easy core removal.
| A | B | C | D | E | F | G | H | |
|---|---|---|---|---|---|---|---|---|
1 |
Size | Aluminium | Plastic | Fiberglass | Ceramic Tile | Particle Board | Cast Iron | Formica |
2 |
3/4" | 1700 | 3430 | 250 | 500 | 3430 | 410 | 210 |
3 |
7/8" | 1500 | 2940 | 210 | 430 | 2940 | 350 | 180 |
4 |
1" | 1300 | 2570 | 190 | 370 | 2570 | 310 | 150 |
5 |
1-1/8" | 1100 | 2290 | 170 | 330 | 2290 | 270 | 140 |
6 |
1-3/8" | 900 | 1870 | 140 | 270 | 1870 | 220 | 110 |
7 |
1-1/2" | 900 | 1710 | 120 | 250 | 1710 | 210 | 100 |
8 |
1-3/4" | 700 | 1470 | 110 | 210 | 1470 | 180 | 90 |
9 |
2" | 600 | 1290 | 90 | 190 | 1290 | 150 | 80 |
10 |
2-1/4" | 600 | 1140 | 80 | 170 | 1140 | 140 | 70 |
11 |
2-1/2" | 500 | 1030 | 70 | 150 | 1030 | 120 | 60 |
12 |
3" | 400 | 860 | 60 | 120 | 860 | 100 | 50 |
13 |
3-1/4" | 400 | 790 | 60 | 110 | 790 | 90 | 50 |
14 |
3-5/8" | 400 | 710 | 50 | 100 | 710 | 90 | 40 |
15 |
3-3/4" | 300 | 690 | 50 | 100 | 690 | 80 | 40 |
16 |
4-1/8" | 300 | 620 | 50 | 90 | 620 | 70 | 40 |
17 |
4-3/4" | 300 | 540 | 40 | 80 | 540 | 60 | 30 |
18 |
5" | 200 | 480 | 40 | 80 | 500 | 60 | 30 |
19 |
5-1/2" | 200 | 420 | 40 | 70 | 460 | 50 | 30 |
20 |
6" | 100 | 360 | 30 | 60 | 420 | 40 | 30 |
If you’re in need of parts that are not listed in our Spring 2019 Glaziers’ Catalog, let us know. We carry a wide range of tools from machining and aerospace, to general contracting and demolition.
