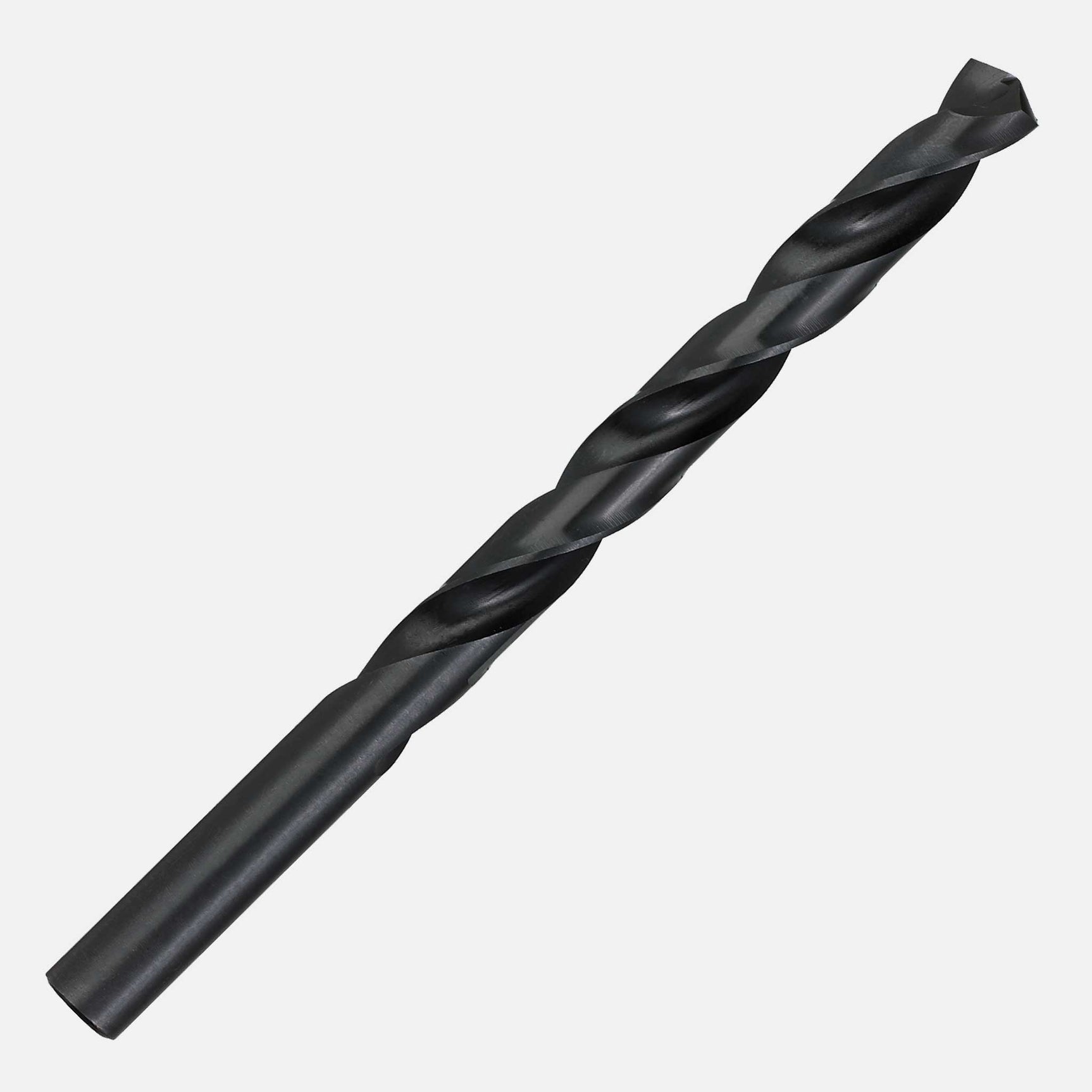

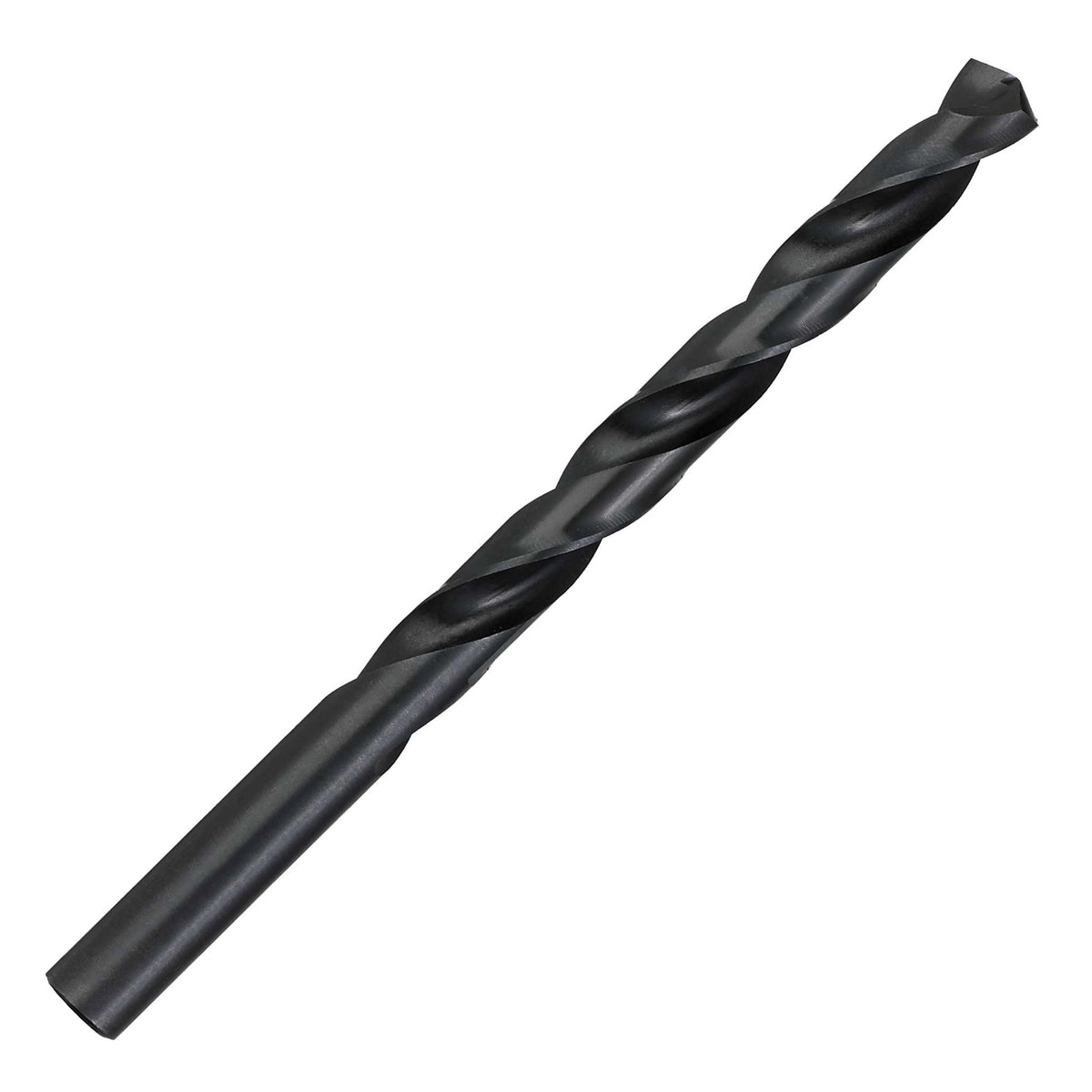

17# 135° Black Oxide Jobber Drills

Size Decimal Flute Length Overall Length Tube Stock # Tube Pkg
60* .0400 11/16 1-5/8 012460 12
59* .0410 11/16 1-5/8 012459 12
58* .0420 11/16 1-5/8 012458 12
57* .0430 3/4 1-3/4 012457 12
56* .0465 3/4 1-3/4 012456 12
55* .0520 7/8 1-7/8 012455 12
54* .0550 7/8 1-7/8 012454 12
53* .0595 7/8 1-7/8 012453 12
52 .0635 7/8 1-7/8 012452 12
51 .0670 1 2 012451 12
50 .0700 1 2 012450 12
49 .0730 1 2 012449 12
48 .0760 1 2 012448 12
47 .0785 1 2 012447 12
46 .0810 1-1/8 2-1/8 012446 12
45 .0820 1-1/8 2-1/8 012445 12
44 .0860 1-1/8 2-1/8 012444 12
43 .0890 1-1/4 2-1/4 012443 12
42 .0935 1-1/4 2-1/4 012442 12
41 .0960 1-3/8 2-3/8 012441 12
40 .0980 1-3/8 2-3/8 012440 12
39 .0995 1-3/8 2-3/8 012439 12
38 .1015 1-7/16 2-1/2 012438 12
37 .1040 1-7/16 2-1/2 012437 12
36 .1065 1-7/16 2-1/2 012436 12
35 .1100 1-1/2 2-5/8 012435 12
34 .1110 1-1/2 2-5/8 012434 12
33 .1130 1-1/2 2-5/8 012433 12
32 .1160 1-5/8 2-3/4 012432 12
31 .1200 1-5/8 2-3/4 012431 12
30 .1285 1-5/8 2-3/4 012430 12
29 .1360 1-3/4 2-7/8 012429 12
28 .1405 1-3/4 2-7/8 012428 12
27 .1440 1-7/8 3 012427 12
26 .1470 1-7/8 3 012426 12
25 .1495 1-7/8 3 012425 12
24 .1520 2 3-1/8 012424 12
23 .1540 2 3-1/8 012423 12
22 .1570 2 3-1/8 012422 12
21 .1590 2-1/8 3-1/4 012421 12
20 .1610 2-1/8 3-1/4 012420 12
19 .1660 2-1/8 3-1/4 012419 12
18 .1695 2-1/8 3-1/4 012418 12
17 .1730 2-3/16 3-3/8 012417 12
16 .1770 2-3/16 3-3/8 012416 12
15 .1800 2-3/16 3-3/8 012415 12
14 .1820 2-3/16 3-3/8 012414 12
13 .1850 2-5/16 3-1/2 012413 12
12 .1890 2-5/16 3-1/2 012412 12
11 .1910 2-5/16 3-1/2 012411 12
10 .1935 2-7/16 3-5/8 012410 12
9 .1960 2-7/16 3-5/8 012409 12
8 .1990 2-7/16 3-5/8 012408 12
7 .2010 2-7/16 3-5/8 012407 12
6 .2040 2-1/2 3-3/4 012406 12
5 .2055 2-1/2 3-3/4 012405 12
4 .2090 2-1/2 3-3/4 012404 12
3 .2130 2-1/2 3-3/4 012403 12
2 .2210 2-5/8 3-7/8 012402 12
1 .2280 2-5/8 3-7/8 012401 12
